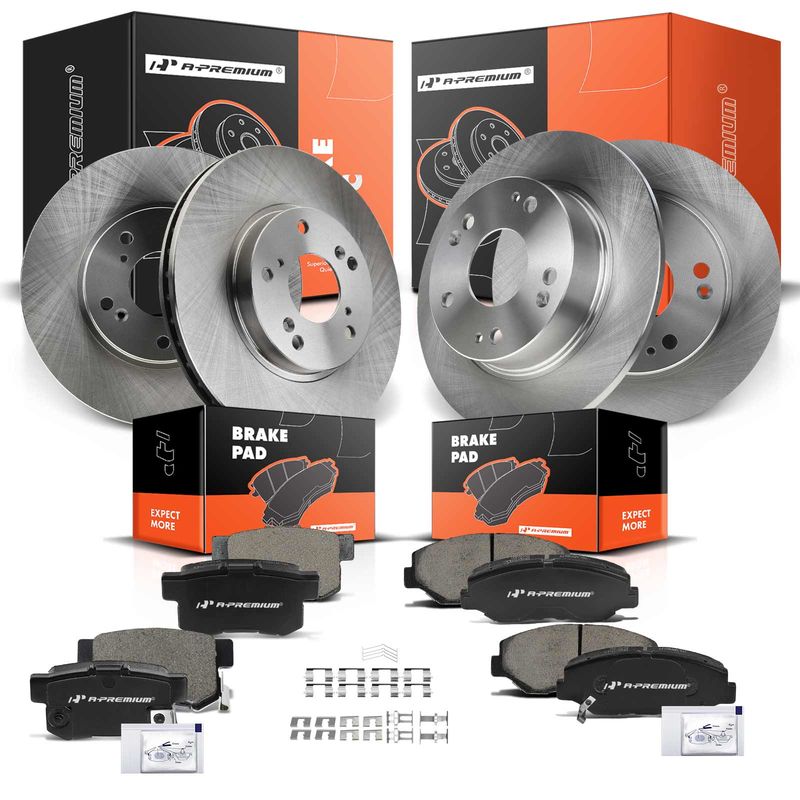

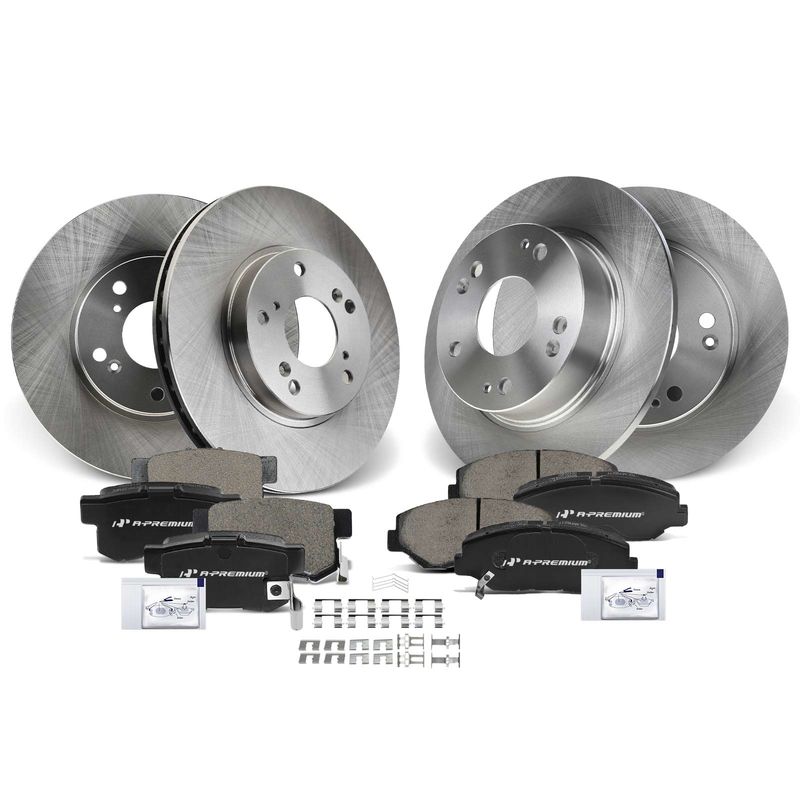

Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Honda Accord 03-07 2.4L
Product Details
Rotor Outside Diameter (In):
11.10 (Front); 10.24 (Rear)
Slotted:
Yes (Front); No (Rear)
Outer Pad Thickness W/O Shim (In):
0.67 (Front); 0.57 (Rear)
Discard Min. Thickness (In):
0.83 (Front); 0.31 (Rear)
Outer Pad Width W/O Shim (In):
5.58 (Front); 3.50 (Rear)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
2.53 (Front); 2.52 (Rear)
Inner Pad Thickness W/O Shim (In):
0.67 (Front); 0.57 (Rear)
Backing Material:
Iron
Brake Lubricant Included:
Yes
Rotor Height (In):
1.85 (Front); 1.92 (Rear)
Pad Wear Sensor Included:
Yes
Notes:
The Front Rotors With 282 Mm Diameter And The Rear With 259.80 Mm Diameter Fit The 4-wheel Disc Brake Model With 5-lug Wheel.
Mounting Bolt Hole Quantity:
5
Bolt Diameter (In):
0.50
Solid Or Vented Type Rotor:
Vented (Front); Solid (Rear)
Inner Pad Width W/O Shim (In):
5.58 (Front); 3.50 (Rear)
Outer Pad Height W/O Shim (In):
2.23 (Front); 1.87 (Rear)
Nominal Thickness (In):
0.91 (Front); 0.35 (Rear)
Rotor Material:
Cast Iron
Mounting Hardware Included:
Yes
Inner Pad Height W/O Shim (In):
2.23 (Front); 1.87 (Rear)
Bolt Circle Diameter (In):
4.50
Product Number:
R31257,12140036,PRT5232,96711FZN,09793211,0832725,45251S87A00,45251TA0A00,P914,R31315,12140055,PRT54
