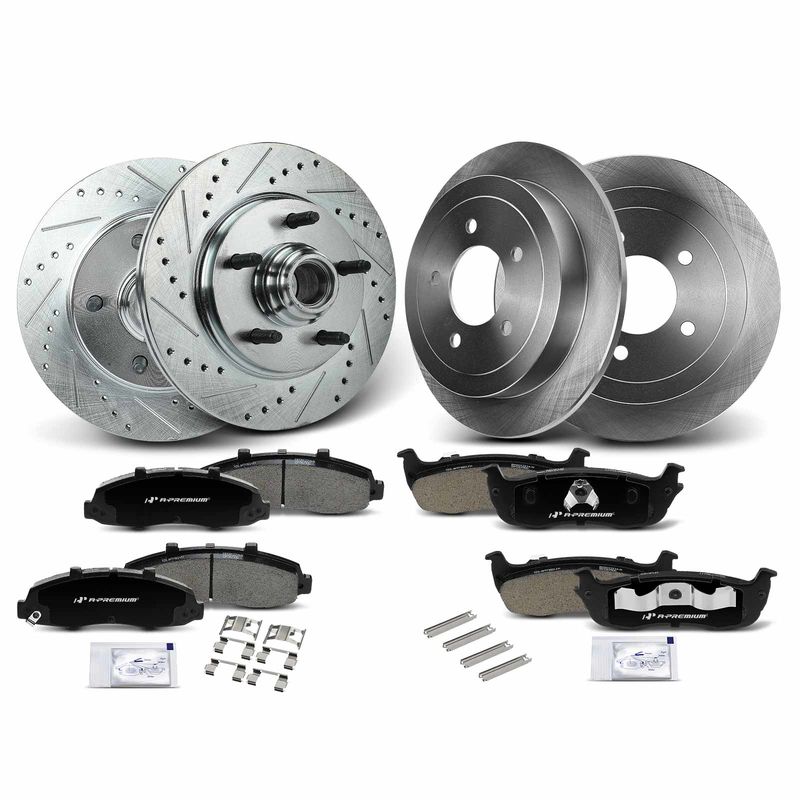

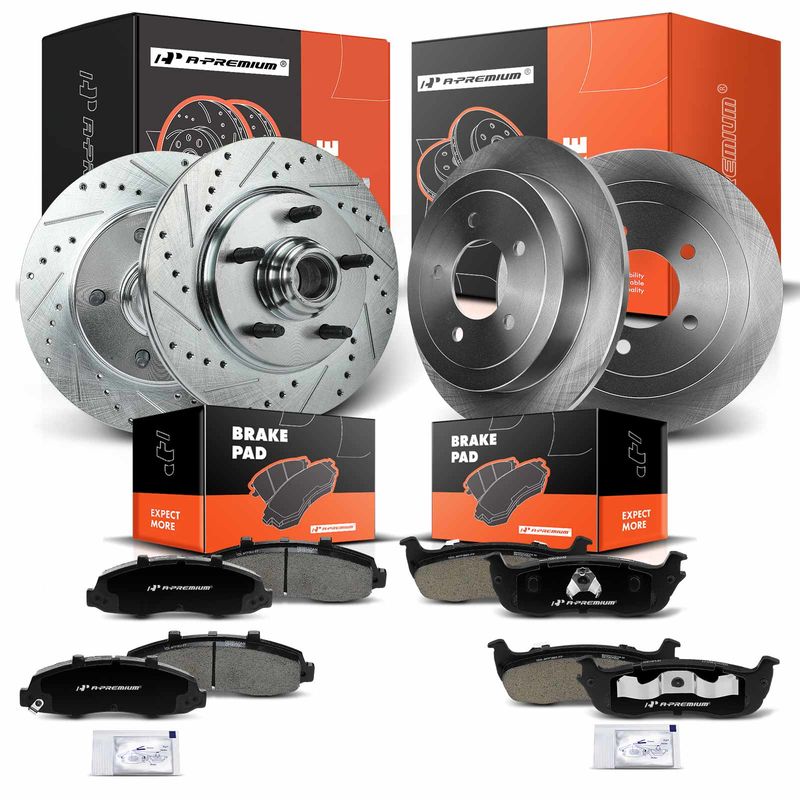

Front & Rear Drilled Rotors & Ceramic Brake Pads for Ford F-150 Lincoln
Product Details
Rotor Outside Diameter (In):
12.13 (Front); 13.15 (Rear)
Slotted:
Yes (Front); No (Rear)
Outer Pad Thickness W/O Shim (In):
0.63 (Front); 0.64 (Rear)
Discard Min. Thickness (In):
0.97 (Front); 0.47 (Rear)
Outer Pad Width W/O Shim (In):
5.61 (Front); 6.54 (Rear)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
3.41 (Front); 3.44 (Rear)
Inner Pad Thickness W/O Shim (In):
0.63 (Front); 0.64 (Rear)
Brake Lubricant Included:
Yes
Rotor Height (In):
4.09 (Front); 2.22 (Rear)
Pad Wear Sensor Included:
Yes (Front)
Mounting Bolt Hole Quantity:
5 (Front); 5 (Rear)
Bolt Diameter (In):
0.63 (Rear)
Solid Or Vented Type Rotor:
Vented (Front); Solid (Rear)
Inner Pad Width W/O Shim (In):
5.61 (Front); 6.54 (Rear)
Outer Pad Height W/O Shim (In):
1.9 (Front); 2.26 (Rear)
Nominal Thickness (In):
1.02 (Front); 0.56 (Rear)
Rotor Material:
Cast Iron
Mounting Hardware Included:
Yes
Inner Pad Height W/O Shim (In):
1.9 (Front); 2.26 (Rear)
Bolt Circle Diameter (In):
5.31 (Front); 5.31 (Rear)
Product Number:
S54092,AR8583XPR,R54090,BRR256,BRRF59,NBRR95 ,P679,10306790,103.06790,10306790,1311067900,1311067900
Send An Inquiry
