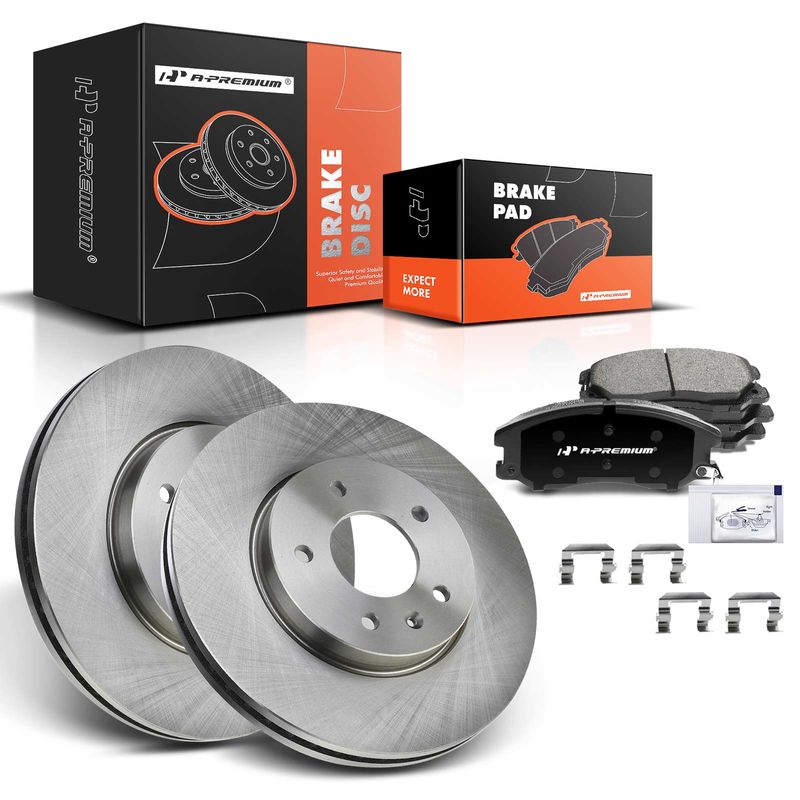

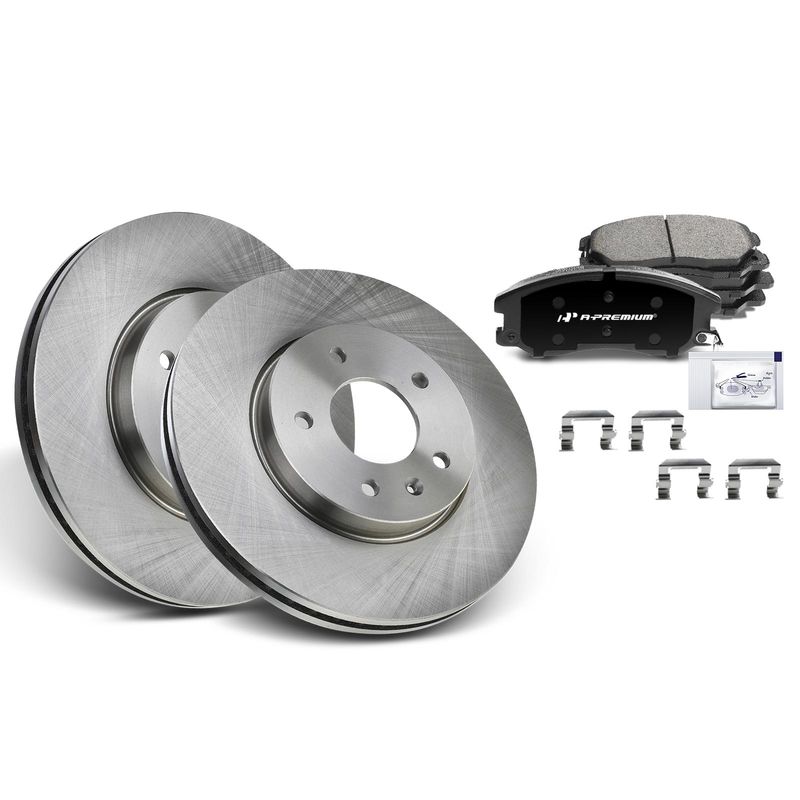

Front Disc Brake Rotors & Ceramic Brake Pads for Chevrolet Captiva Sport Pontiac
Product Details

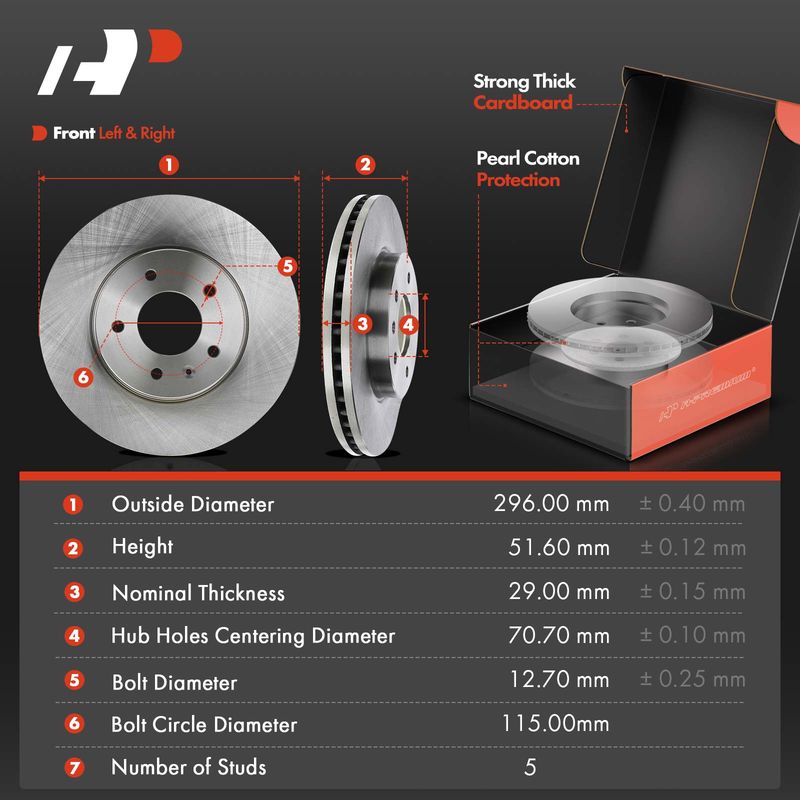

Rotor Outside Diameter (In):
11.65
Slotted:
Yes
Outer Pad Thickness W/O Shim (In):
0.65
Discard Min. Thickness (In):
1.08
Outer Pad Width W/O Shim (In):
5.87
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
2.78
Inner Pad Thickness W/O Shim (In):
0.65
Backing Material:
Iron
Brake Lubricant Included:
Yes
Rotor Height (In):
2.04
Pad Wear Sensor Included:
Yes
Pad Wear Sensor Type:
Mechanical
Notes:
The Rotors With 295.8 Mm Outside Diameter Fit The 5-stud Wheel.
Mounting Bolt Hole Quantity:
5
Bolt Diameter (In):
0.49
Solid Or Vented Type Rotor:
Vented
Inner Pad Width W/O Shim (In):
5.87
Outer Pad Height W/O Shim (In):
2.44
Nominal Thickness (In):
1.14
Rotor Material:
Cast Iron
Mounting Hardware Included:
Yes
Inner Pad Height W/O Shim (In):
2.44
Bolt Circle Diameter (In):
4.50
Product Number:
R55148,PRT5693,145693,15837488,25804049,580547,P1264,161264,171264,PGD1264C,SBC1264,MGD1264CH,17D126
