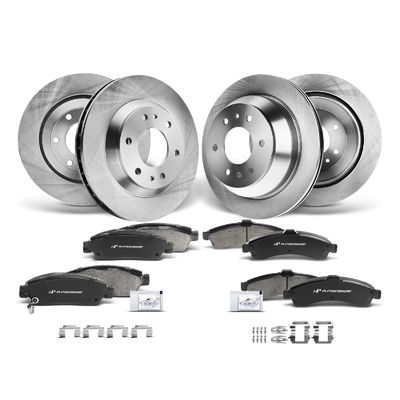

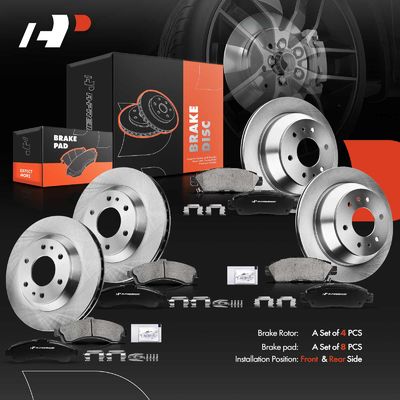

Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Chevrolet Trailblazer
Product Details
Rotor Outside Diameter (In):
12.01 (Front); 12.80 (Rear)
Slotted:
Yes (Front); No (Rear)
Outer Pad Thickness W/O Shim (In):
0.66 (Front); 0.69 (Rear)
Discard Min. Thickness (In):
1.08 (Front); 0.73 (Rear)
Outer Pad Width W/O Shim (In):
6.96 (Front); 5.41 (Rear)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
3.11 (Front); 3.10 (Rear)
Inner Pad Thickness W/O Shim (In):
0.66 (Front); 0.69 (Rear)
Backing Material:
Iron
Brake Lubricant Included:
Yes
Rotor Height (In):
2.15 (Front); 3.35 (Rear)
Pad Wear Sensor Included:
No (Front); Yes (Rear)
Pad Wear Sensor Type:
Mechanical
Notes:
The Front Disc Brake Rotors With 12.01 Inch (305 Mm) Outside Diameter And The Rear With 12.8 Inch (325 Mm) Outside Diameter Fit The 6-stud Wheel.
Mounting Bolt Hole Quantity:
6
Bolt Diameter (In):
0.52
Solid Or Vented Type Rotor:
Vented
Inner Pad Width W/O Shim (In):
6.96 (Front); 5.41 (Rear)
Outer Pad Height W/O Shim (In):
2.47 (Front); 1.86 (Rear)
Nominal Thickness (In):
1.15 (Front); 0.79 (Rear)
Rotor Material:
Cast Iron
Mounting Hardware Included:
Yes
Inner Pad Height W/O Shim (In):
2.47 (Front); 1.86 (Rear)
Bolt Circle Diameter (In):
5.00
Product Number:
R55069,12166051,580019R,BR55069,BD126027E,P882,D882,10308820,16882,17882,ZD882,SBC882,R55073,1216605
