Name: Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Chevrolet Trailblazer
Brand: Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Chevrolet Trailblazer
SKU: Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Chevrolet Trailblazer
Price: 1 USD
Availability: InStock
Rating: 4.5 (111 reviews)

Home > products > Brake Discs, Pads & Calipers >

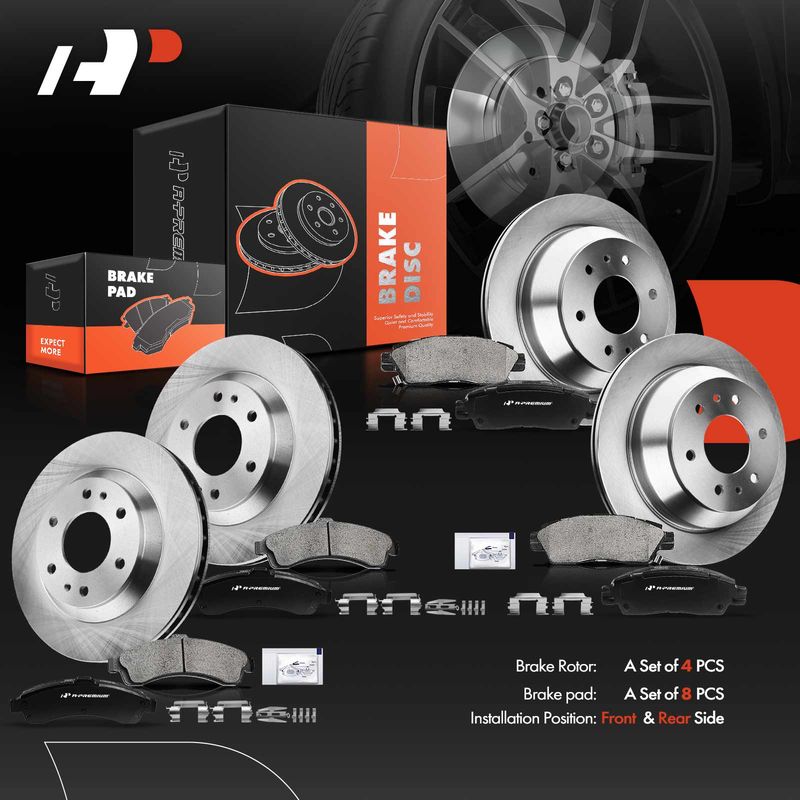

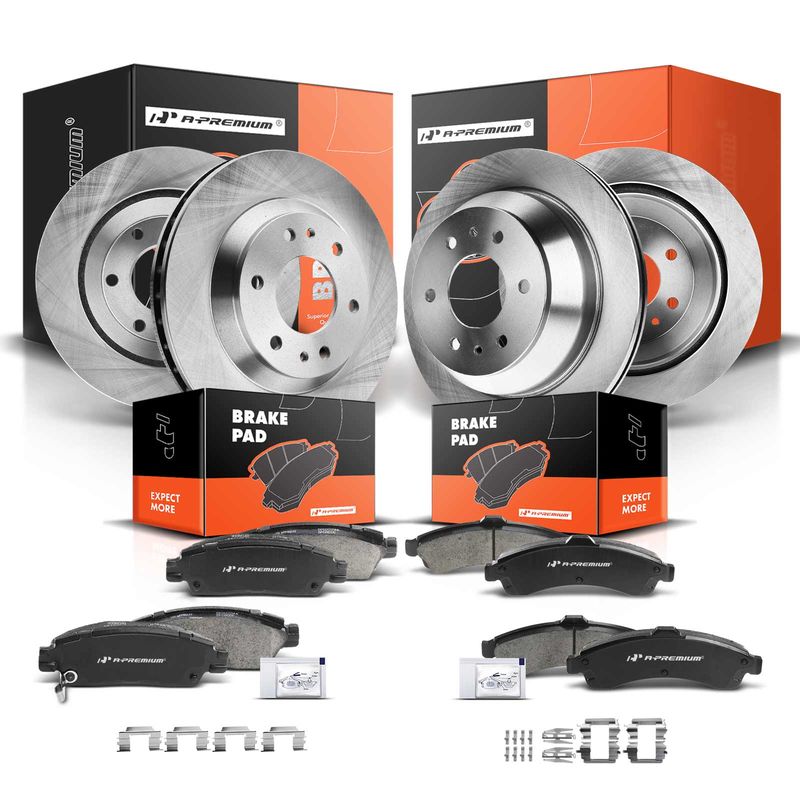

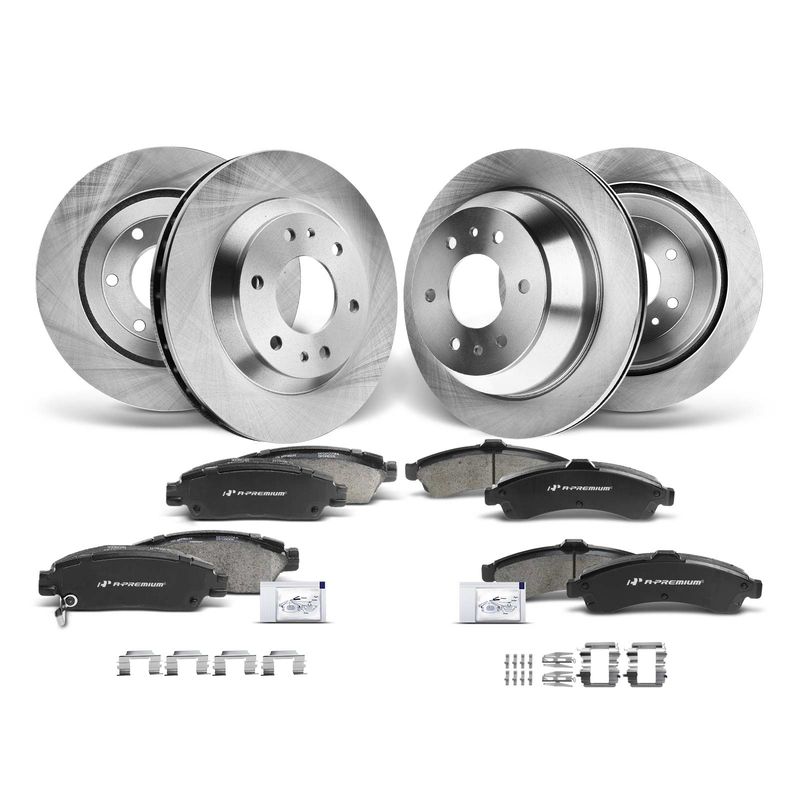

Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Chevrolet Trailblazer

Request A Quote

Product Details

Rotor Outside Diameter (in):

12.01 (Front); 12.80 (Rear)

Slotted:

Yes (Front); No (Rear)

Outer Pad Thickness W/o Shim (in):

0.66 (Front); 0.69 (Rear)

Discard Min. Thickness (in):

1.08 (Front); 0.73 (Rear)

Outer Pad Width W/o Shim (in):

6.96 (Front); 5.41 (Rear)

Friction Material Composition:

Ceramic

Hub Holes Centering Diameter (in):

3.11 (Front); 3.10 (Rear)

Inner Pad Thickness W/o Shim (in):

0.66 (Front); 0.69 (Rear)

Backing Material:

Iron

Brake Lubricant Included:

Yes

Rotor Height (in):

2.15 (Front); 3.35 (Rear)

Pad Wear Sensor Included:

No (Front); Yes (Rear)

Pad Wear Sensor Type:

Mechanical

Notes:

The Front Disc Brake Rotors With 12.01 Inch (305 Mm) Outside Diameter And The Rear With 12.8 Inch (325 Mm) Outside Diameter Fit The 6-stud Wheel.

Mounting Bolt Hole Quantity:

Bolt Diameter (in):

0.52

Solid Or Vented Type Rotor:

Vented

Inner Pad Width W/o Shim (in):

6.96 (Front); 5.41 (Rear)

Outer Pad Height W/o Shim (in):

2.47 (Front); 1.86 (Rear)

Nominal Thickness (in):

1.15 (Front); 0.79 (Rear)

Rotor Material:

Cast Iron

Mounting Hardware Included:

Yes

Inner Pad Height W/o Shim (in):

2.47 (Front); 1.86 (Rear)

Bolt Circle Diameter (in):

5.00

Product Number:

R55069,12166051,580019R,BR55069,BD126027E,P882,D882,10308820,16882,17882,ZD882,SBC882,R55073,1216605
