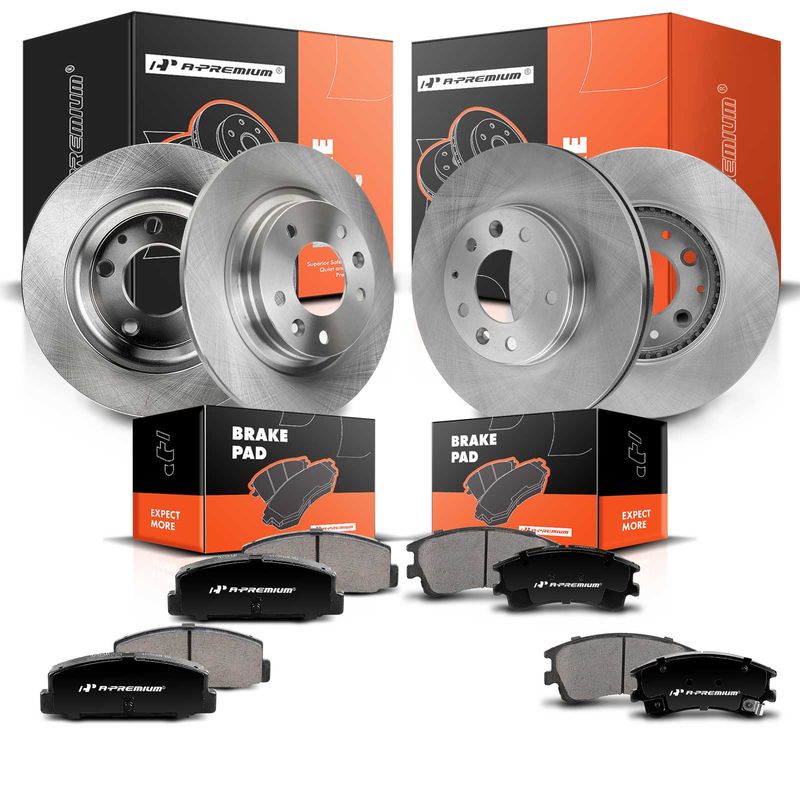

Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Mazda 6 2003-2005
Product Details

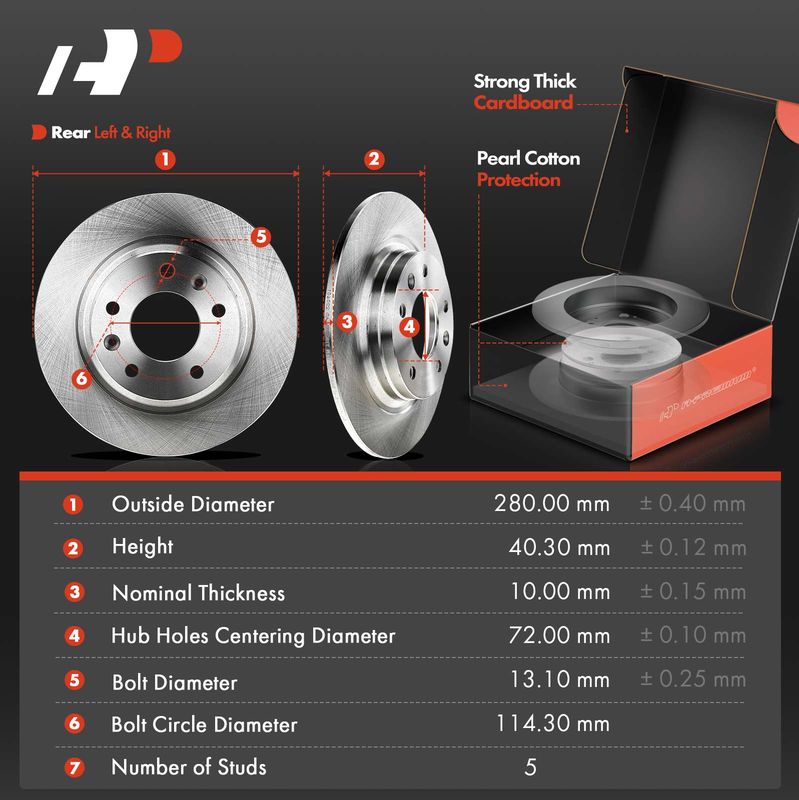

Rotor Outside Diameter (In):
11.10 (Front); 11.02 (Rear)
Slotted:
Yes
Outer Pad Thickness W/O Shim (In):
0.72 (Front); 0.51 (Rear)
Discard Min. Thickness (In):
0.91 (Front); 0.31 (Rear)
Outer Pad Width W/O Shim (In):
5.2 (Front); 4.24 (Rear)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
2.82 (Front); 2.83 (Rear)
Inner Pad Thickness W/O Shim (In):
0.72 (Front); 0.51 (Rear)
Backing Material:
Iron
Brake Lubricant Included:
Yes
Rotor Height (In):
1.92 (Front); 1.59 (Rear)
Pad Wear Sensor Included:
Yes (Front); No (Rear)
Mounting Bolt Hole Quantity:
5
Bolt Diameter (In):
0.51 (Front); 0.52 (Rear)
Solid Or Vented Type Rotor:
Vented (Front); Solid (Rear)
Inner Pad Width W/O Shim (In):
5.2 (Front); 4.24 (Rear)
Outer Pad Height W/O Shim (In):
2.35 (Front); 1.57 (Rear)
Nominal Thickness (In):
0.98 (Front); 0.39 (Rear)
Rotor Material:
Cast Iron
Mounting Hardware Included:
Yes
Inner Pad Height W/O Shim (In):
2.35 (Front); 1.57 (Rear)
Bolt Circle Diameter (In):
4.5 (Front); 4.5 (Rear)
Product Number:
P957,10309570,D957,SGD957C,1310095700,BE957H,MGD957CH,SBC957,P482,10303320,1310033200,BP332C,ZD482A,
