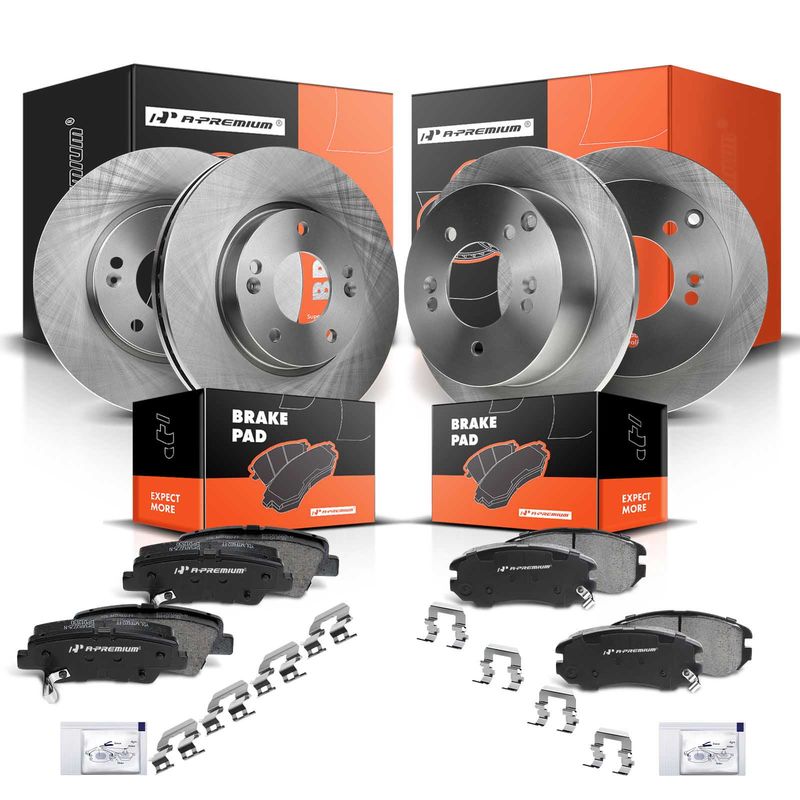

Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Hyundai Sonata 08-09
Product Details
Rotor Outside Diameter (In):
11.02 (Front); 10.31 (Rear)
Slotted:
Yes (Front); No (Rear)
Outer Pad Thickness W/O Shim (In):
0.67 (Front); 0.58 (Rear)
Discard Min. Thickness (In):
0.96 (Front); 0.33 (Rear)
Outer Pad Width W/O Shim (In):
5.18 (Front); 3.93 (Rear)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
2.72 (Front); 3.00 (Rear)
Inner Pad Thickness W/O Shim (In):
0.67 (Front); 0.58 (Rear)
Backing Material:
Iron
Rotor Height (In):
1.86 (Front); 2.40 (Rear)
Pad Wear Sensor Included:
Yes
Pad Wear Sensor Type:
Mechanical
Notes:
The Front Disc Brake Rotors With 11.02 Inch (280 Mm) Outside Diameter And The Rear With 10.31 Inch (262 Mm) Outside Diameter Fit The 5-stud Wheel.
Mounting Bolt Hole Quantity:
5
Bolt Diameter (In):
0.50 (Front); 0.49 (Rear)
Solid Or Vented Type Rotor:
Vented (Front); Solid (Rear)
Inner Pad Width W/O Shim (In):
5.18 (Front); 3.93 (Rear)
Outer Pad Height W/O Shim (In):
2.37 (Front); 1.61 (Rear)
Nominal Thickness (In):
1.03 (Front); 0.39 (Rear)
Rotor Material:
Cast Iron
Brake Lubricant Included:
Yes
Inner Pad Height W/O Shim (In):
2.37 (Front); 1.61 (Rear)
Bolt Circle Diameter (In):
4.50
Product Number:
R31339,980095R,PRT5535,12151011,BR31339,12151011,JBR959,R31337,60003016,JBR1136SCR,28010832,32051015
