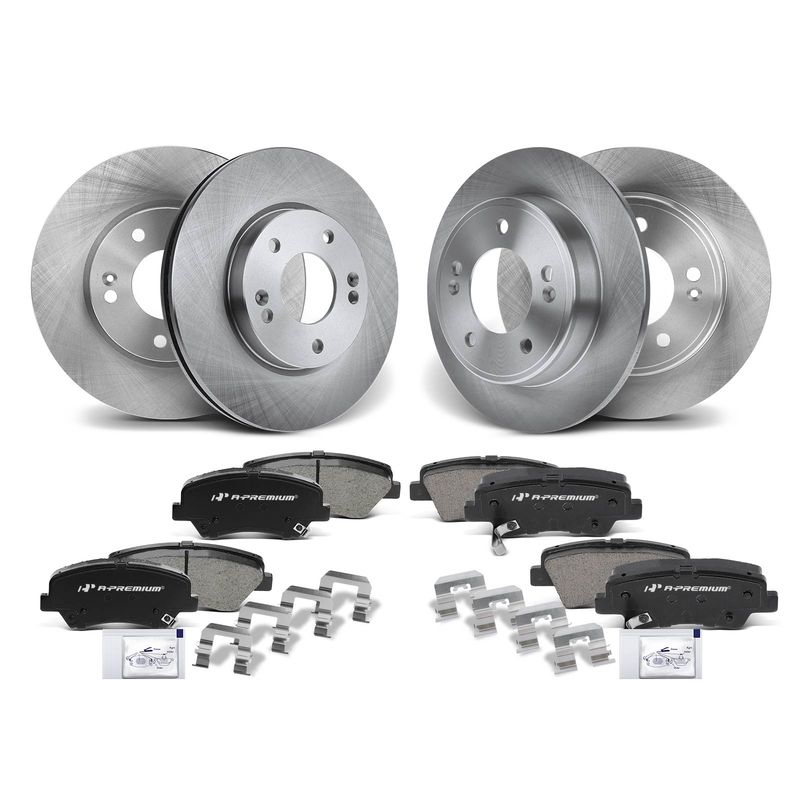

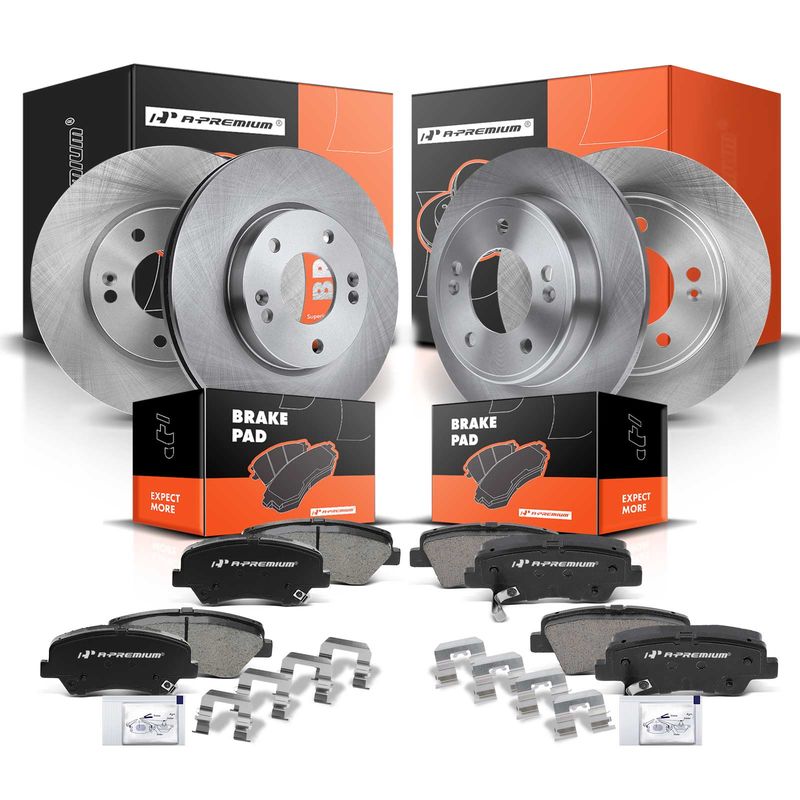

Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Hyundai Elantra Kia
Product Details
Rotor Outside Diameter (In):
11.02 (Front); 10.28 (Rear)
Slotted:
Yes (Front); No (Rear)
Outer Pad Thickness W/O Shim (In):
0.66 (Front); 0.58 (Rear)
Discard Min. Thickness (In):
0.84 (Front); 0.33 (Rear)
Outer Pad Width W/O Shim (In):
5.23 (Front); 3.93 (Rear)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
2.72 (Front); 2.99 (Rear)
Inner Pad Thickness W/O Shim (In):
0.66 (Front); 0.58 (Rear)
Backing Material:
Iron
Brake Lubricant Included:
Yes
Rotor Height (In):
1.75 (Front); 1.78 (Rear)
Pad Wear Sensor Included:
Yes
Mounting Bolt Hole Quantity:
5
Solid Or Vented Type Rotor:
Vented (Front); Solid (Rear)
Inner Pad Width W/O Shim (In):
5.23 (Front); 3.93 (Rear)
Outer Pad Height W/O Shim (In):
2.35 (Front); 1.61 (Rear)
Nominal Thickness (In):
0.91 (Front); 0.39 (Rear)
Rotor Material:
Cast Iron
Mounting Hardware Included:
Yes
Inner Pad Height W/O Shim (In):
2.35 (Front); 1.61 (Rear)
Bolt Circle Diameter (In):
4.50
Product Number:
R31584,P1543,SBC1595,BP1543C,MGD1543CH,FVC1543,BE1543H,CFC1595,30115430,301.15430,10515430,105.15430
