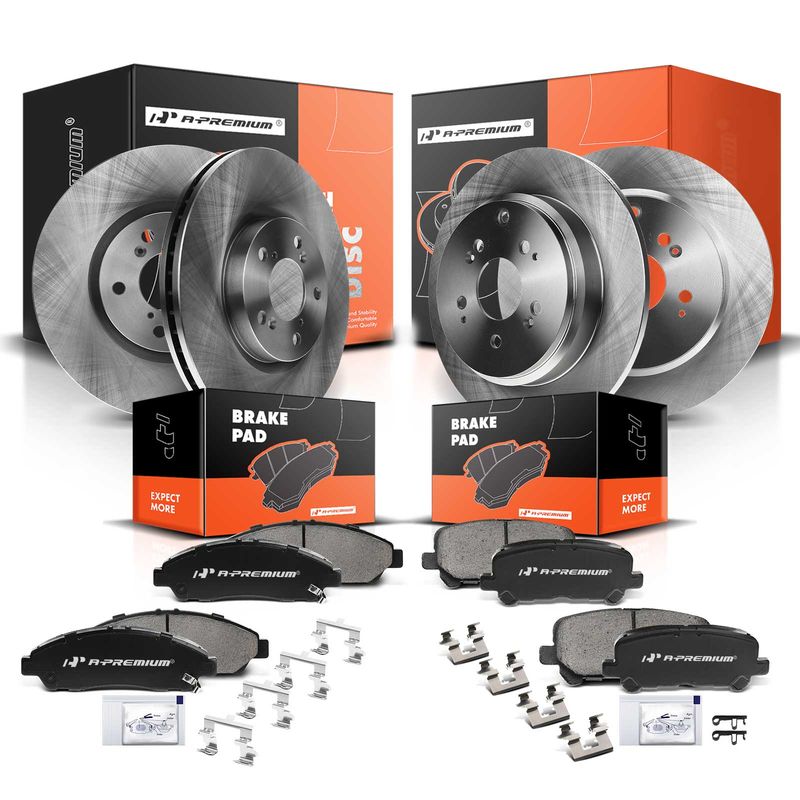

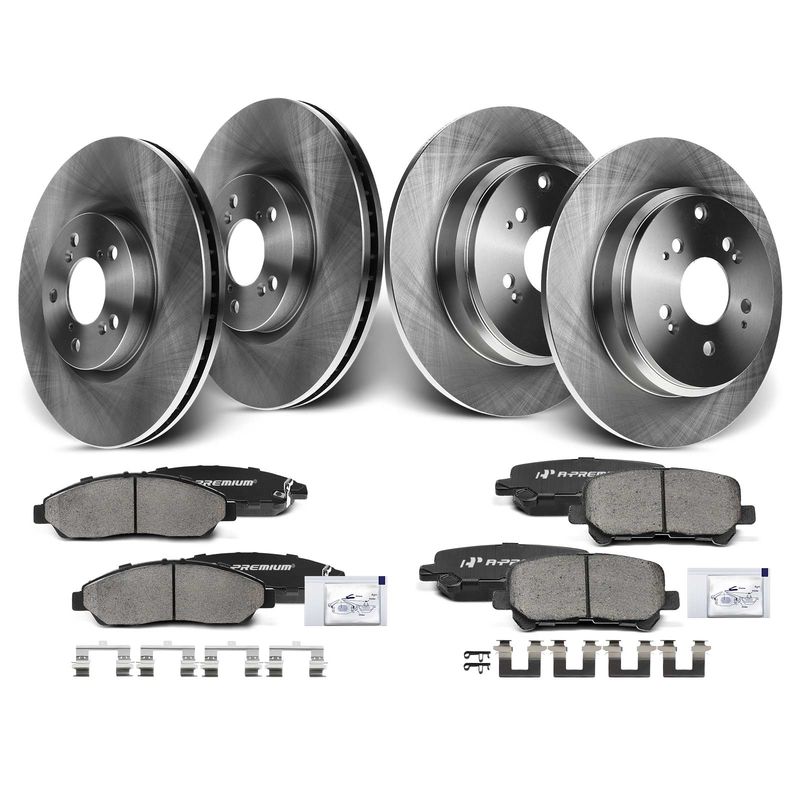

Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Honda Pilot 09-15 Acura
Product Details
Rotor Outside Diameter (In):
12.99 (Front); 13.15 (Rear)
Slotted:
Yes
Outer Pad Thickness W/O Shim (In):
0.61 (Rear)
Discard Min. Thickness (In):
1.02 (Front); 0.35 (Rear)
Outer Pad Width W/O Shim (In):
4.46 (Rear)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
2.76
Inner Pad Thickness W/O Shim (In):
0.61 (Rear)
Backing Material:
Iron
Brake Lubricant Included:
Yes
Rotor Height (In):
1.86 (Front); 2.51 (Rear)
Pad Wear Sensor Included:
Yes (Front); No (Rear)
Pad Wear Sensor Type:
Mechanical
Notes:
The Front Rotor Diameter Is 12.99 Inch (330 Mm), And The Rear Is 13.15 Inch (334 Mm).
Mounting Bolt Hole Quantity:
5
Bolt Diameter (In):
0.57
Solid Or Vented Type Rotor:
Vented (Front); Solid (Rear)
Inner Pad Width W/O Shim (In):
4.46 (Rear)
Outer Pad Height W/O Shim (In):
1.91 (Rear)
Nominal Thickness (In):
1.10 (Front); 0.43 (Rear)
Rotor Material:
Cast Iron
Mounting Hardware Included:
Yes
Inner Pad Height W/O Shim (In):
1.91 (Rear)
Bolt Circle Diameter (In):
4.72
Product Number:
R31468,1280CH980566R,P1280,D1280,ZD1280,BE1280H,QC1280,BC1280,45022STXA00,45022SZAA10,R31469,1204007
