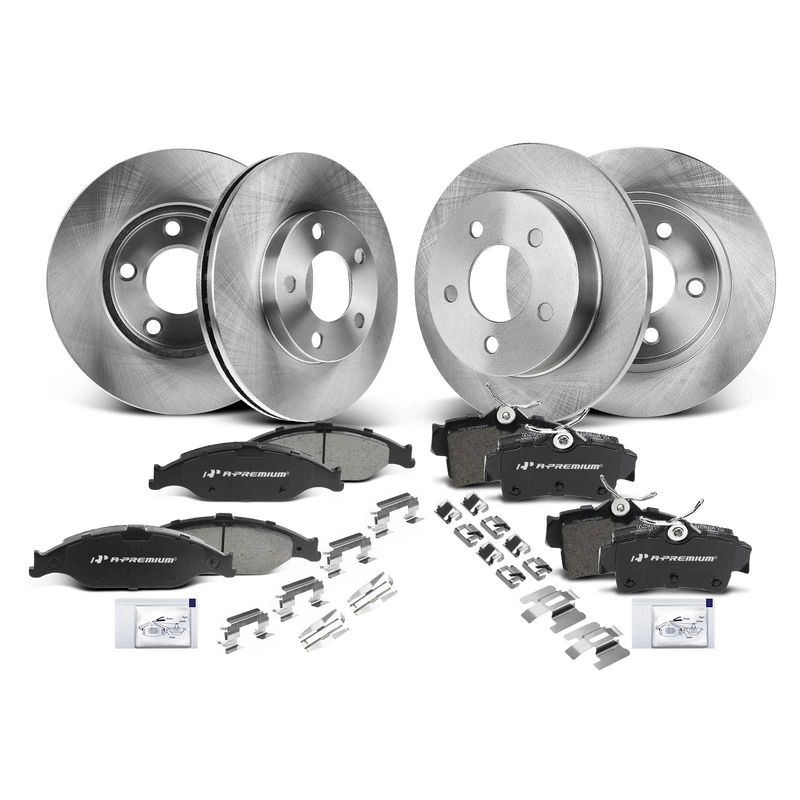

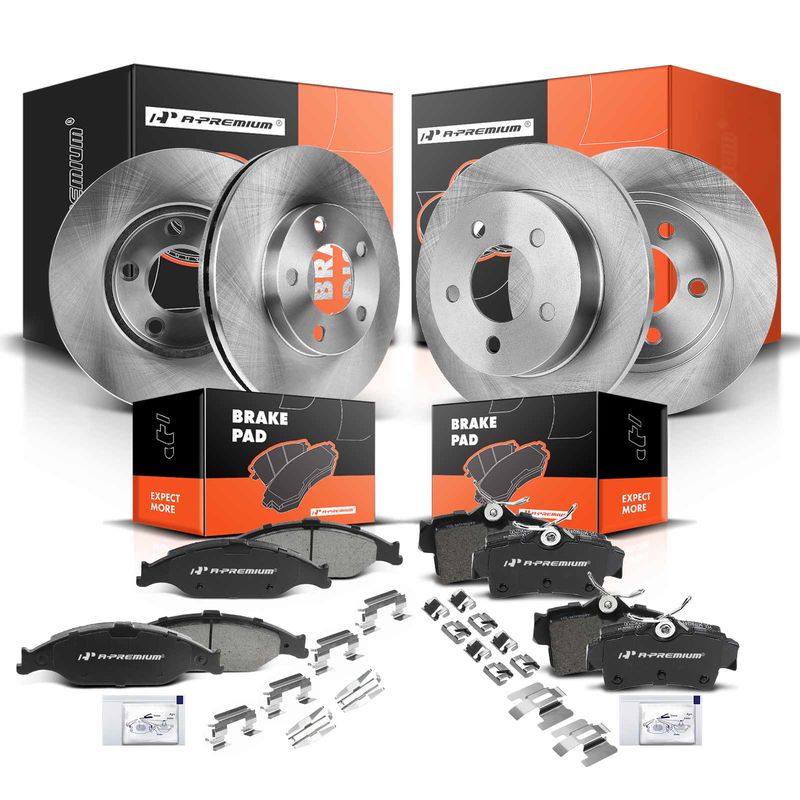

Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Ford Mustang 1999-2004
Product Details

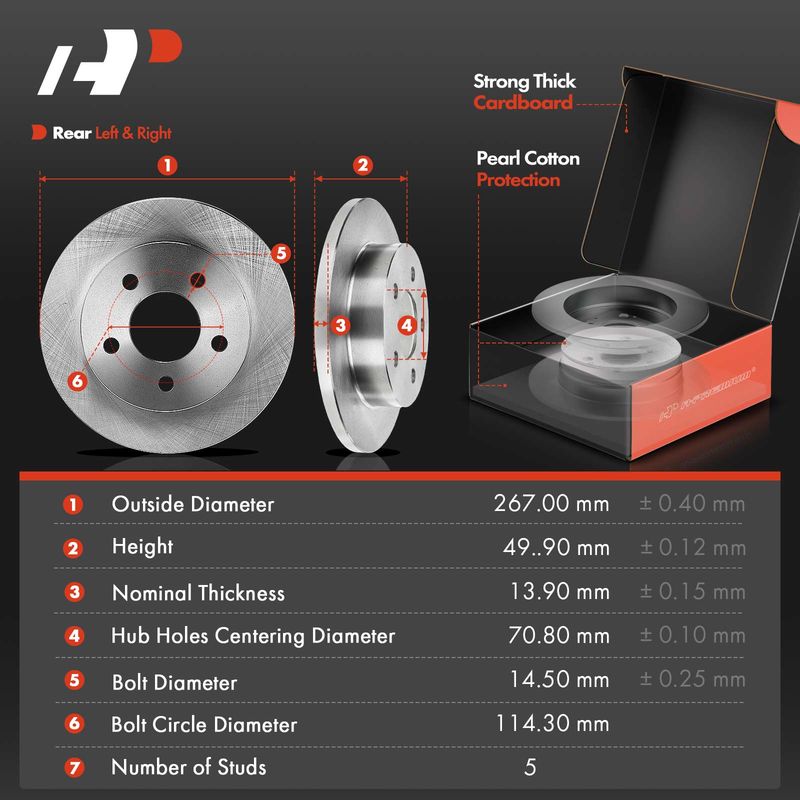

Rotor Outside Diameter (In):
10.87 (Front); 10.51 (Rear)
Slotted:
Yes (Front); No (Rear)
Outer Pad Thickness W/O Shim (In):
0.61 (Front); 0.67 (Rear)
Discard Min. Thickness (In):
0.97 (Front); 0.50 (Rear)
Outer Pad Width W/O Shim (In):
7.22 (Front); 3.54 (Rear)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
2.80 (Front); 2.79 (Rear)
Inner Pad Thickness W/O Shim (In):
0.61 (Front); 0.67 (Rear)
Backing Material:
Iron
Brake Lubricant Included:
Yes
Rotor Height (In):
1.83 (Front); 1.96 (Rear)
Bolt Diameter (In):
0.60 (Front); 0.57 (Rear)
Mounting Bolt Hole Quantity:
5
Notes:
The Front Disc Brake Rotors With 10.87 Inch (276 Mm) Outside Diameter And The Rear With 10.51 Inch (267 Mm) Outside Diameter Only Fit Base And GT Model With 5-stud Wheel.
Solid Or Vented Type Rotor:
Vented (Front); Solid (Rear)
Inner Pad Width W/O Shim (In):
7.22 (Front); 3.54 (Rear)
Outer Pad Height W/O Shim (In):
2.39 (Front); 1.93 (Rear)
Nominal Thickness (In):
1.02 (Front); 0.55 (Rear)
Rotor Material:
Cast Iron
Mounting Hardware Included:
Yes
Inner Pad Height W/O Shim (In):
2.39 (Front); 1.93 (Rear)
Bolt Circle Diameter (In):
4.50
Product Number:
R54011,BR54011,BR5401101,66443PER,12161041,P804,ACT804,BC804,10508040,QC804,R54017,8934042,66448,540
