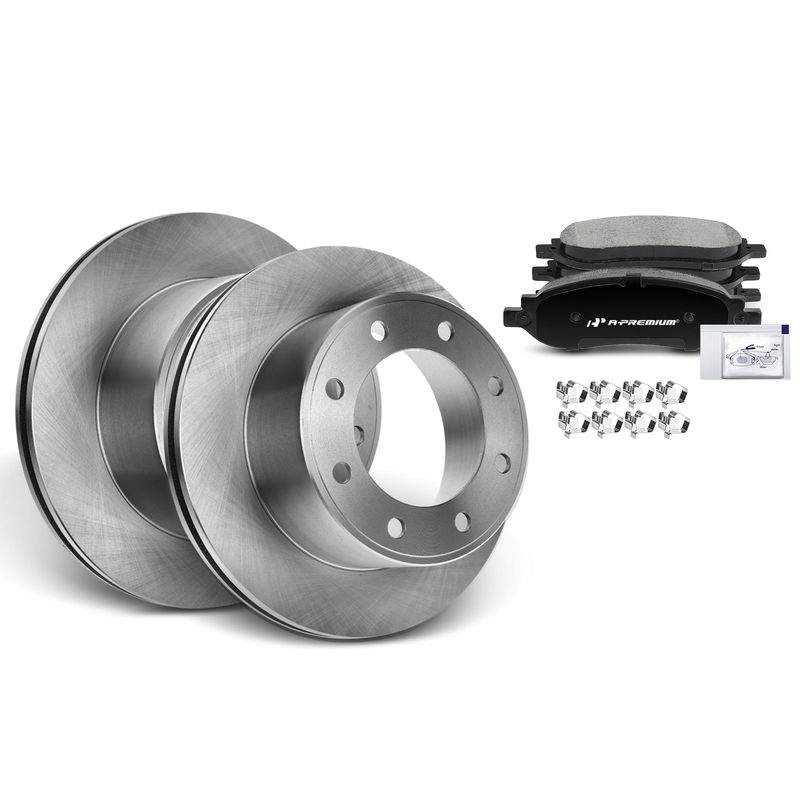

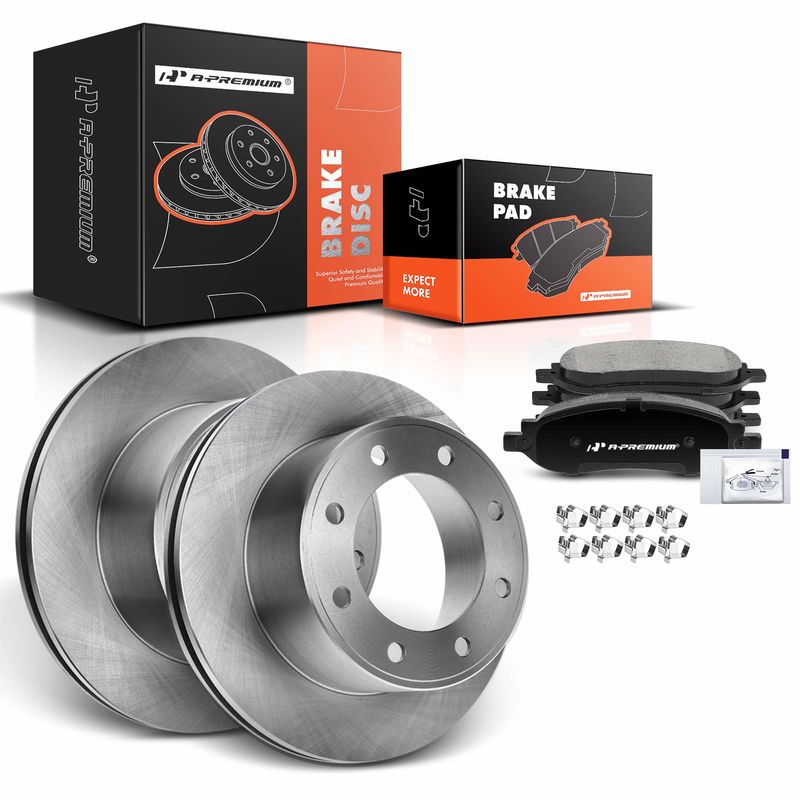

Rear Disc Brake Rotors & Ceramic Brake Pads for Ford F-250 Super Duty 2005-2007
Product Details
Mounting Bolt Hole Quantity:
8
Friction Material Composition:
Ceramic

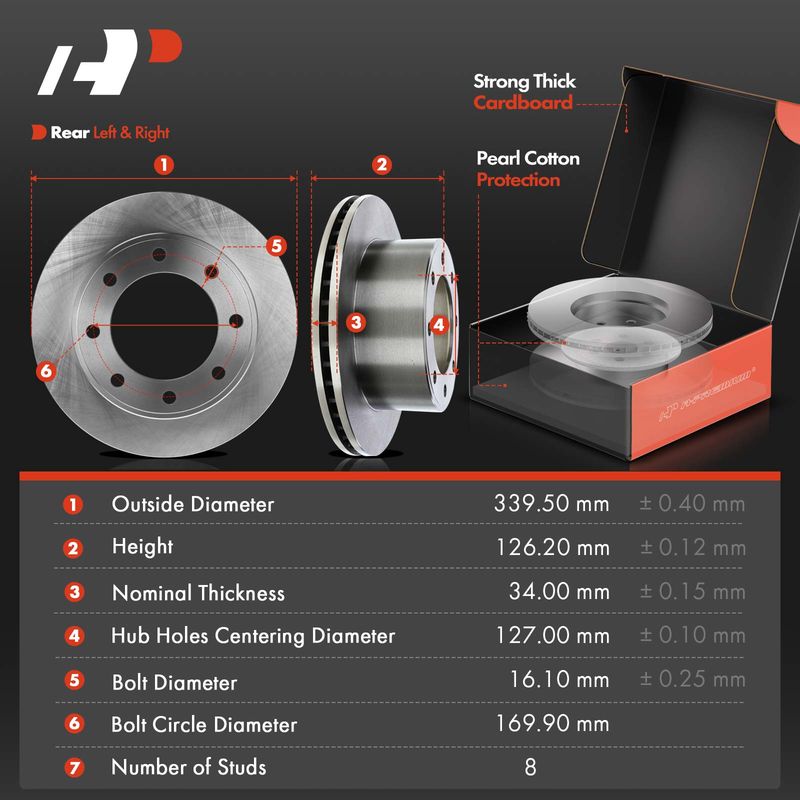

Rotor Outside Diameter (In):
13.39
Slotted:
No
Inner Pad Thickness W/O Shim (In):
0.71
Backing Material:
Iron
Solid Or Vented Type Rotor:
Vented
Nominal Thickness (In):
1.34
Discard Min. Thickness (In):
1.28
Rotor Material:
Cast Iron
Notes:
The Rotor Outside Diameter Is 13.39 Inch (340 Mm).
Mounting Hardware Included:
Yes
Inner Pad Height W/O Shim (In):
2.19
Hub Holes Centering Diameter (In):
5.00
Pad Wear Sensor Included:
No
Rotor Height (In):
4.98
Brake Lubricant Included:
Yes
Inner Pad Width W/O Shim (In):
6.99
Bolt Diameter (In):
0.63
Bolt Circle Diameter (In):
6.69
Product Number:
R54141,680394R,BR54141,60054199,AR85116,PRT5730,20010461,680394,P1068,5C3Z2001AA,5C3Z2001CA,5C3Z2200
