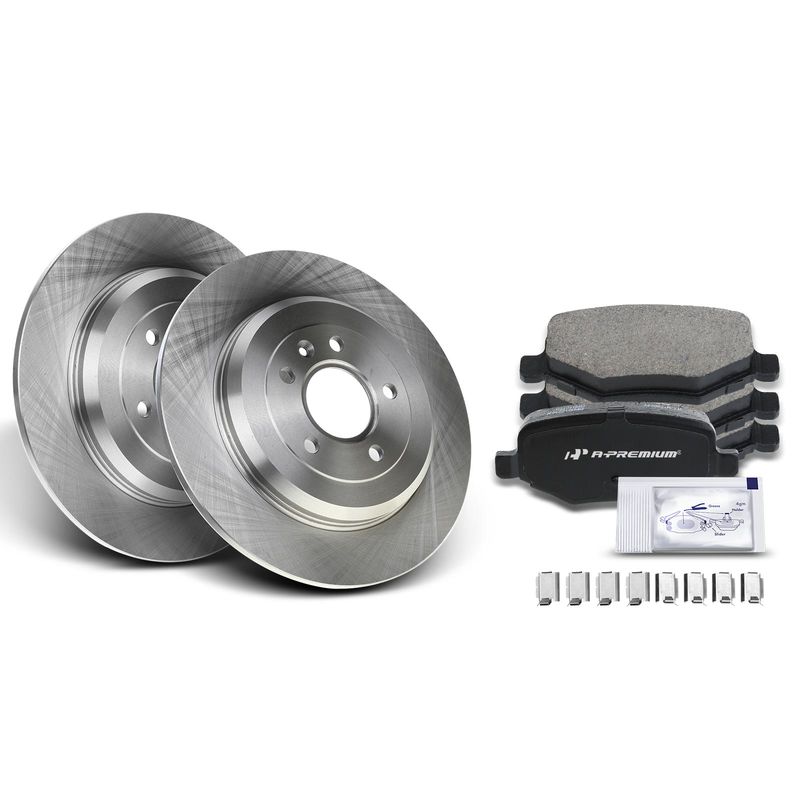

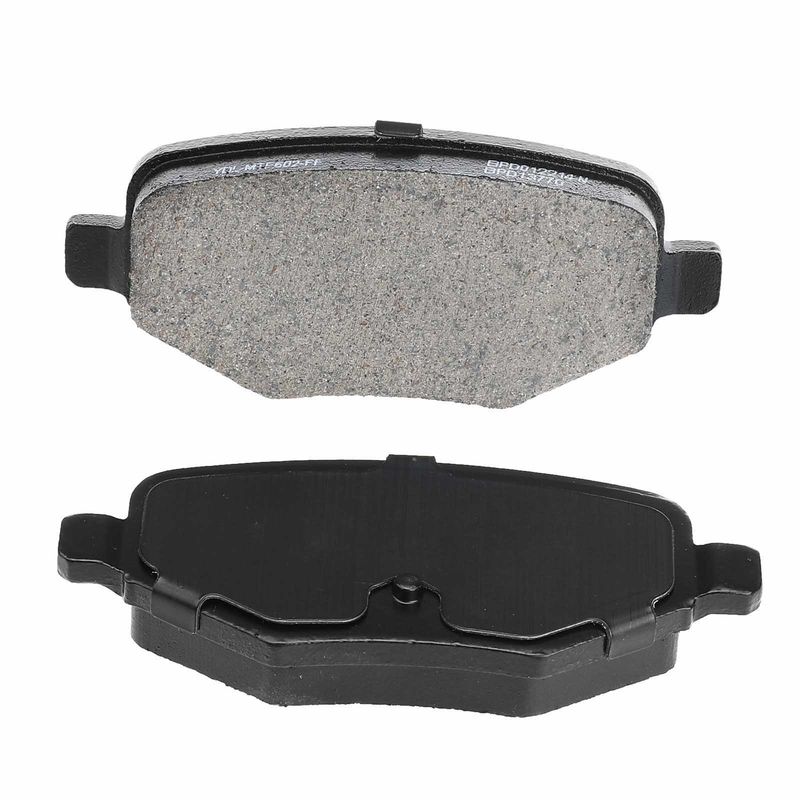

Rear Disc Brake Rotors & Ceramic Brake Pads for Ford Explorer 11-17 Edge Lincoln
Product Details
Rotor Outside Diameter (In):
12.99
Slotted:
No
Outer Pad Thickness W/O Shim (In):
0.67
Discard Min. Thickness (In):
0.39
Outer Pad Width W/O Shim (In):
4.60
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
2.68
Inner Pad Thickness W/O Shim (In):
0.67
Backing Material:
Iron
Brake Lubricant Included:
Yes
Rotor Height (In):
1.48
Pad Wear Sensor Included:
No
Notes:
The Rear Brake Rotors With 330 Mm Diameter Fit The Standard Brake Option, And They Do Not Fit The HD Brakes.
Mounting Bolt Hole Quantity:
5
Bolt Diameter (In):
0.56
Solid Or Vented Type Rotor:
Solid
Inner Pad Width W/O Shim (In):
4.60
Outer Pad Height W/O Shim (In):
1.97
Nominal Thickness (In):
0.43
Rotor Material:
Cast Iron
Mounting Hardware Included:
Yes
Inner Pad Height W/O Shim (In):
1.97
Bolt Circle Diameter (In):
4.50
Product Number:
R54165,BR900928,P1377,BP1377C,SBC1754,161377
