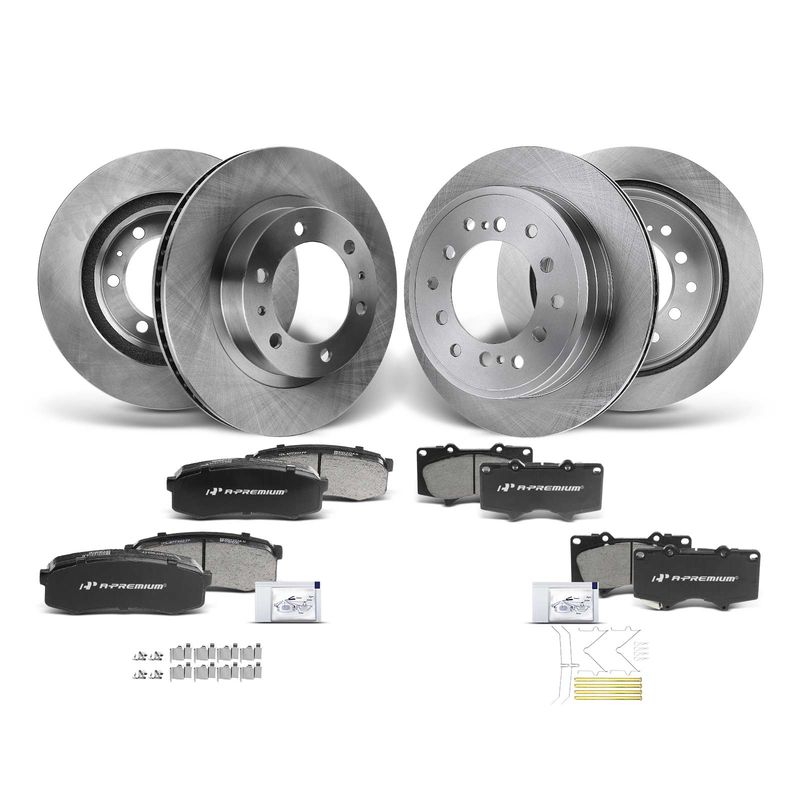

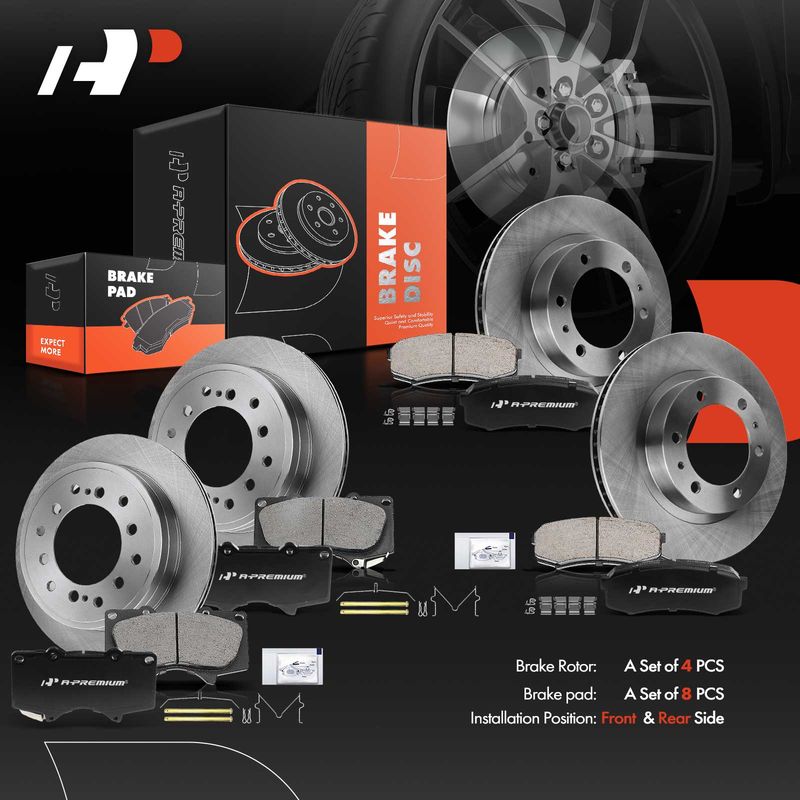

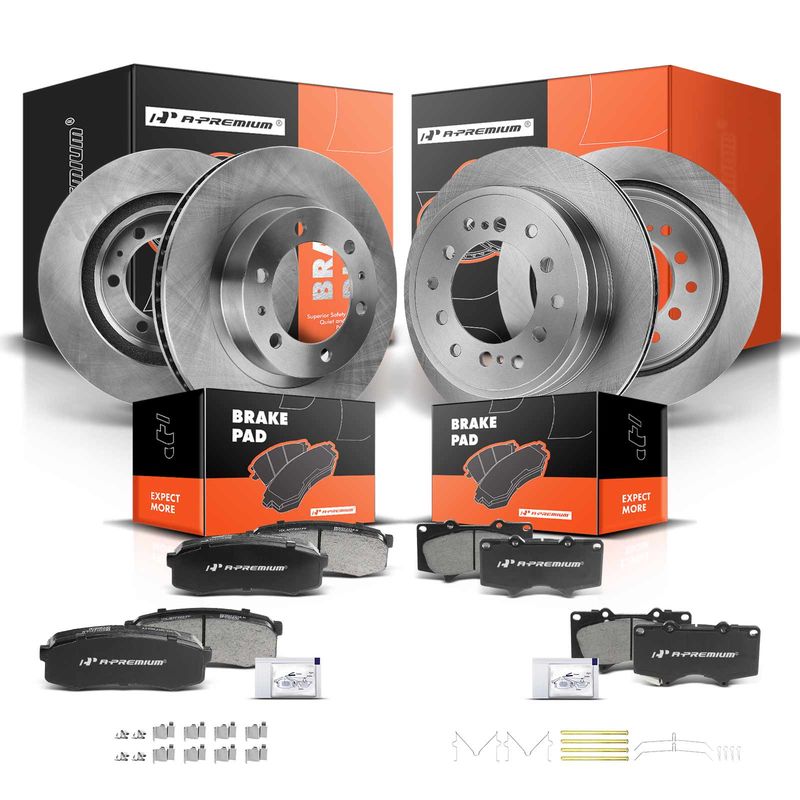

Name: Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Toyota 4Runner 2003-2009
Brand: Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Toyota 4Runner 2003-2009
SKU: Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Toyota 4Runner 2003-2009
Price: 1 USD
Availability: InStock
Rating: 4.9 (167 reviews)

Home > products > Brake Discs, Pads & Calipers >

Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Toyota 4Runner 2003-2009

Request A Quote

Product Details

Rotor Outside Diameter (in):

12.56 (Front); 12.28 (Rear)

Slotted:

Yes

Outer Pad Thickness W/o Shim (in):

0.67 (Front); 0.60 (Rear)

Discard Min. Thickness (in):

1.02 (Front); 0.63 (Rear)

Outer Pad Width W/o Shim (in):

5.30 (Front); 4.57 (Rear)

Friction Material Composition:

Ceramic

Hub Holes Centering Diameter (in):

4.25 (Front); 4.18 (Rear)

Inner Pad Thickness W/o Shim (in):

0.67 (Front); 0.60 (Rear)

Backing Material:

Iron

Brake Lubricant Included:

Yes

Rotor Height (in):

2.66 (Front); 2.68 (Rear)

Pad Wear Sensor Included:

Yes (Front); No (Rear)

Notes:

The Front Disc Brake Rotors With 12.56 Inch (319 Mm) Outside Diameter And The Rear With 12.28 Inch (312 Mm) Outside Diameter Fit The 6-stud Wheel.

Mounting Bolt Hole Quantity:

Bolt Diameter (in):

0.57

Solid Or Vented Type Rotor:

Vented

Inner Pad Width W/o Shim (in):

5.30 (Front); 4.57 (Rear)

Outer Pad Height W/o Shim (in):

3.02 (Front); 1.73 (Rear)

Nominal Thickness (in):

1.10 (Front); 0.71 (Rear)

Rotor Material:

Cast Iron

Mounting Hardware Included:

Yes

Inner Pad Height W/o Shim (in):

3.02 (Front); 1.73 (Rear)

Bolt Circle Diameter (in):

5.50

Product Number:

R31327,12144129,BR31327,BR3132701,BR3132702,P976,ZD976,P976,ZD976,BP976,D976M,PR976,R31294,BR31294,P
