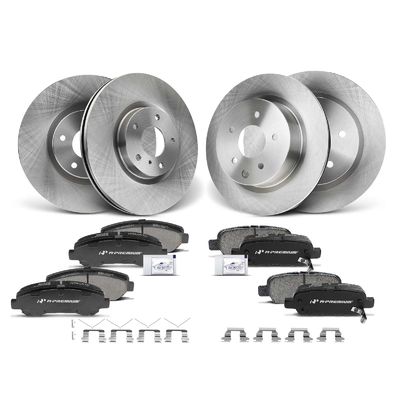

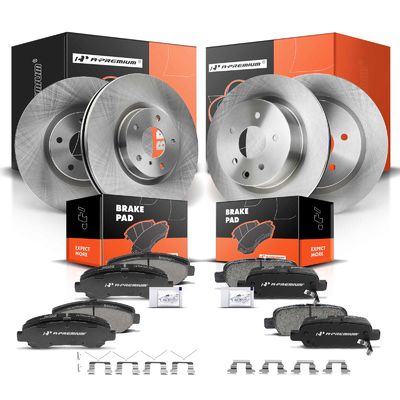

Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Nissan Maxima 09-14 16-17
Product Details
Rotor Outside Diameter (In):
12.58 (Front); 12.11 (Rear)
Slotted:
Yes
Outer Pad Thickness W/O Shim (In):
0.68 (Front)
Discard Min. Thickness (In):
1.02 (Front); 0.55 (Rear)
Outer Pad Width W/O Shim (In):
5.58 (Front)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
2.68
Inner Pad Thickness W/O Shim (In):
0.68 (Front)
Backing Material:
Iron
Rotor Height (In):
1.94 (Front); 2.45 (Rear)
Pad Wear Sensor Included:
No (Front); Yes (Rear)
Bolt Diameter (In):
0.51 (Front); 0.50 (Rear)
Mounting Bolt Hole Quantity:
5
Notes:

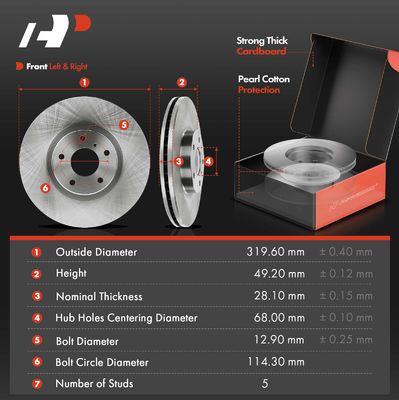

The Front Disc Brake Rotors With 12.58 Inch (319.6 Mm) Outside Diameter And The Rear With 12.11 Inch (307.7 Mm) Outside Diameter Fit The 5-stud Wheel.
Solid Or Vented Type Rotor:
Vented
Inner Pad Width W/O Shim (In):
5.58 (Front)
Outer Pad Height W/O Shim (In):
2.32 (Front)
Nominal Thickness (In):
1.11 (Front); 0.63 (Rear)
Rotor Material:
Cast Iron
Brake Lubricant Included:
Yes
Inner Pad Height W/O Shim (In):
2.32 (Front)
Bolt Circle Diameter (In):
4.50
Product Number:
R31375,980700R,BR900712,PRT5953,980700FZN,P1374,FVC1374,30113740,ACT1338A,R31387,980333R,12142088,BR
