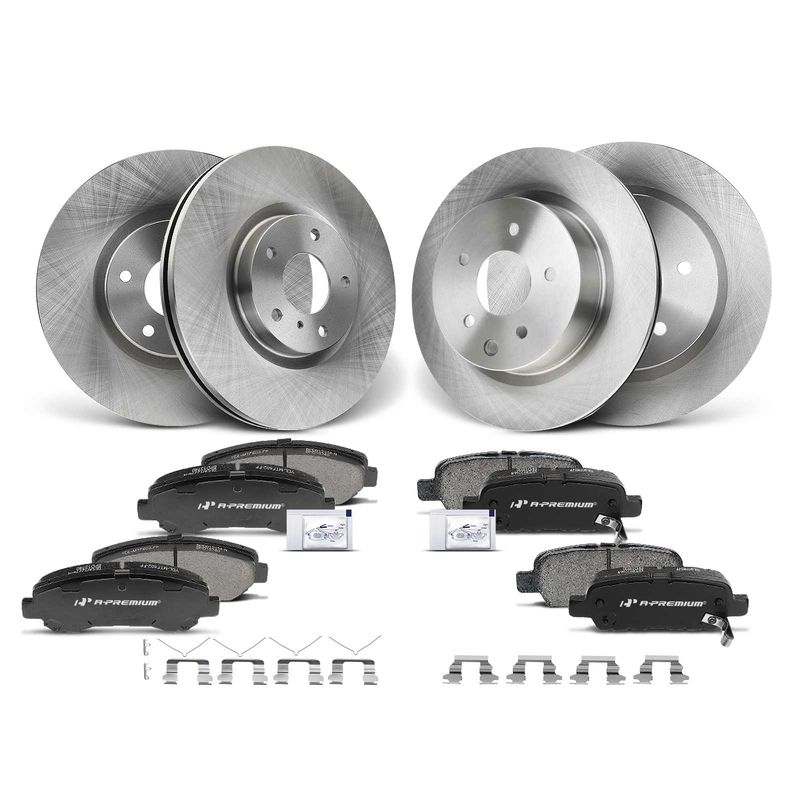

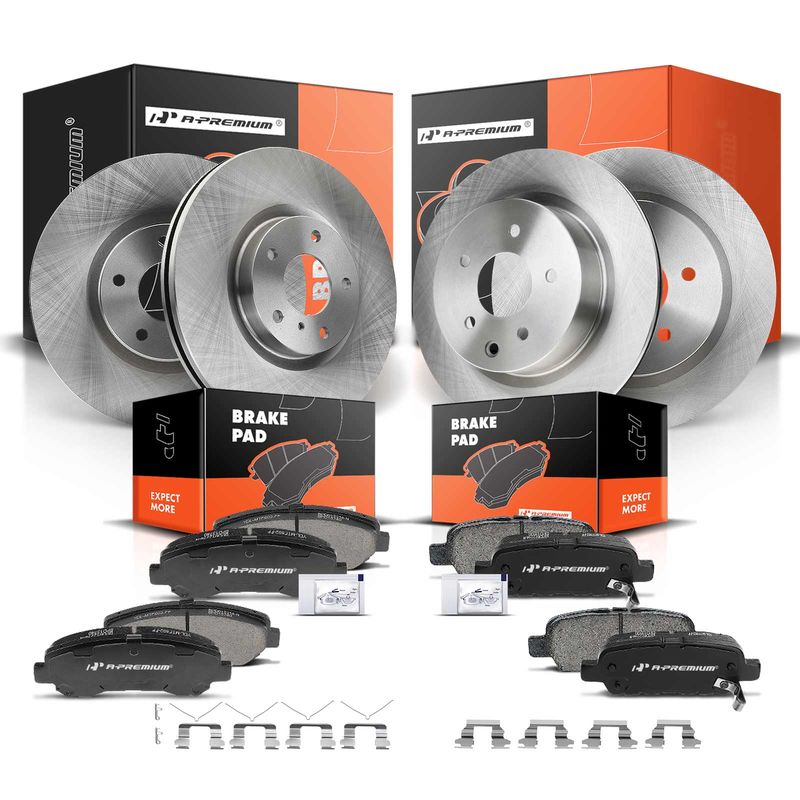

Name: Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Nissan Maxima 09-14 16-17
Brand: Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Nissan Maxima 09-14 16-17
SKU: Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Nissan Maxima 09-14 16-17
Price: 1 USD
Availability: InStock
Rating: 4.6 (150 reviews)

Home > products > Brake Discs, Pads & Calipers >

Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Nissan Maxima 09-14 16-17

Request A Quote

Product Details

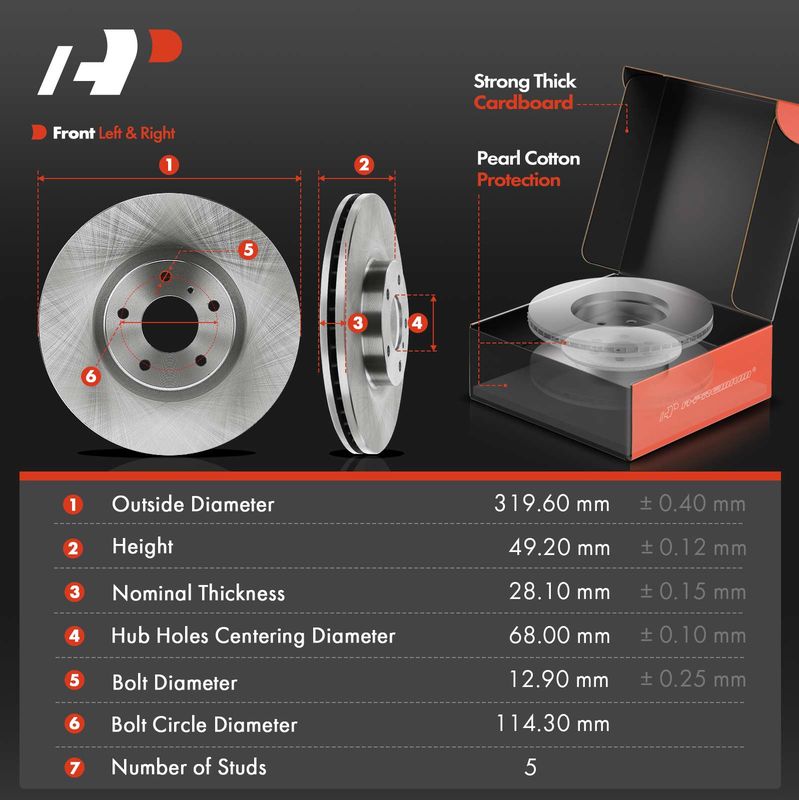

Rotor Outside Diameter (in):

12.58 (Front); 12.11 (Rear)

Slotted:

Yes

Outer Pad Thickness W/o Shim (in):

0.68 (Front)

Discard Min. Thickness (in):

1.02 (Front); 0.55 (Rear)

Outer Pad Width W/o Shim (in):

5.58 (Front)

Friction Material Composition:

Ceramic

Hub Holes Centering Diameter (in):

2.68

Inner Pad Thickness W/o Shim (in):

0.68 (Front)

Backing Material:

Iron

Rotor Height (in):

1.94 (Front); 2.45 (Rear)

Pad Wear Sensor Included:

No (Front); Yes (Rear)

Bolt Diameter (in):

0.51 (Front); 0.50 (Rear)

Mounting Bolt Hole Quantity:

Notes:

The Front Disc Brake Rotors With 12.58 Inch (319.6 Mm) Outside Diameter And The Rear With 12.11 Inch (307.7 Mm) Outside Diameter Fit The 5-stud Wheel.

Solid Or Vented Type Rotor:

Vented

Inner Pad Width W/o Shim (in):

5.58 (Front)

Outer Pad Height W/o Shim (in):

2.32 (Front)

Nominal Thickness (in):

1.11 (Front); 0.63 (Rear)

Rotor Material:

Cast Iron

Brake Lubricant Included:

Yes

Inner Pad Height W/o Shim (in):

2.32 (Front)

Bolt Circle Diameter (in):

4.50

Product Number:

R31375,980700R,BR900712,PRT5953,980700FZN,P1374,FVC1374,30113740,ACT1338A,R31387,980333R,12142088,BR
