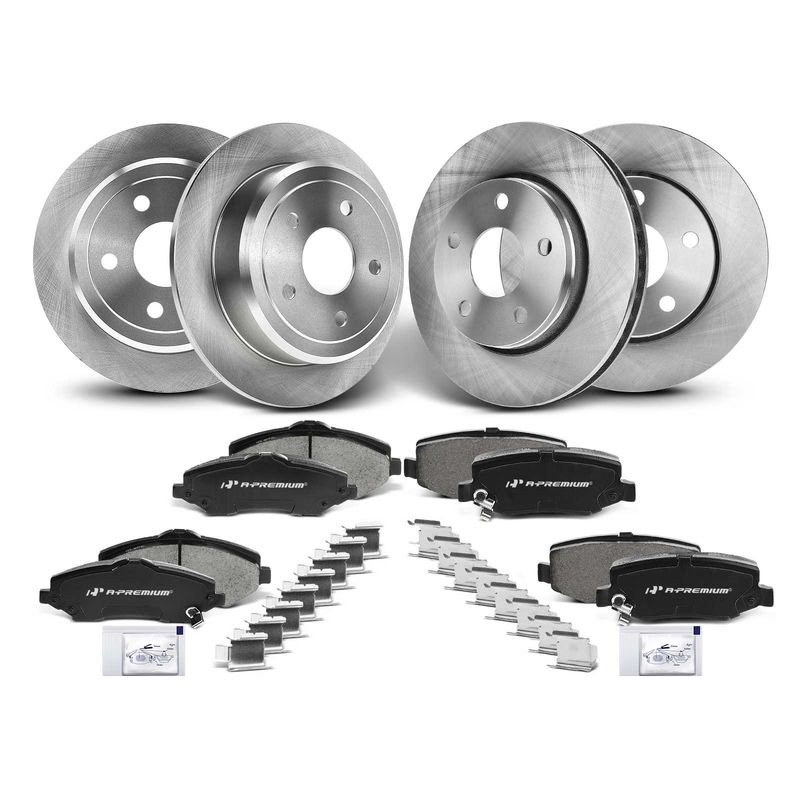

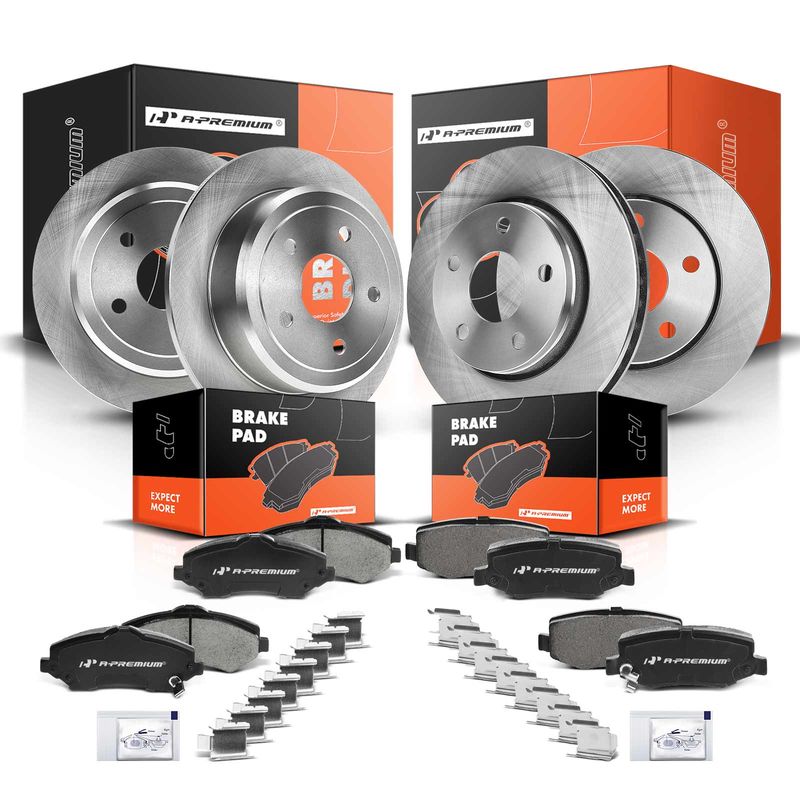

Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Jeep Wrangler 07-17
Product Details
Rotor Outside Diameter (In):
11.89 (Front); 12.44 (Rear)
Slotted:
Yes (Front); No (Rear)
Outer Pad Thickness W/O Shim (In):
0.65 (Front); 0.63 (Rear)
Discard Min. Thickness (In):
1.04 (Front); 0.41 (Rear)
Outer Pad Width W/O Shim (In):
5.77 (Front); 4.59 (Rear)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
2.84
Inner Pad Thickness W/O Shim (In):
0.65 (Front); 0.63 (Rear)
Backing Material:
Iron
Brake Lubricant Included:
Yes
Rotor Height (In):
2.17 (Front); 3.01 (Rear)
Pad Wear Sensor Included:
Yes
Pad Wear Sensor Type:
Mechanical
Notes:
The Front Rotor Diameter Is 11.89 Inch (302 Mm) And The Rear Is 12.44 Inch (316 Mm).
Mounting Bolt Hole Quantity:
5
Bolt Diameter (In):
0.65
Solid Or Vented Type Rotor:
Vented (Front); Solid (Rear)
Inner Pad Width W/O Shim (In):
5.77 (Front); 4.59 (Rear)
Outer Pad Height W/O Shim (In):
2.52 (Front); 1.78 (Rear)
Nominal Thickness (In):
1.10 (Front); 0.47 (Rear)
Rotor Material:
Cast Iron
Mounting Hardware Included:
Yes
Inner Pad Height W/O Shim (In):
2.52 (Front); 1.78 (Rear)
Bolt Circle Diameter (In):
5.00
Product Number:
P1273,BP1273C,BE1327H,171273,PGD1273M,P1274,CFC1274,30112740,ZD1274,QC1274,R53040,R53040,780518,1216
