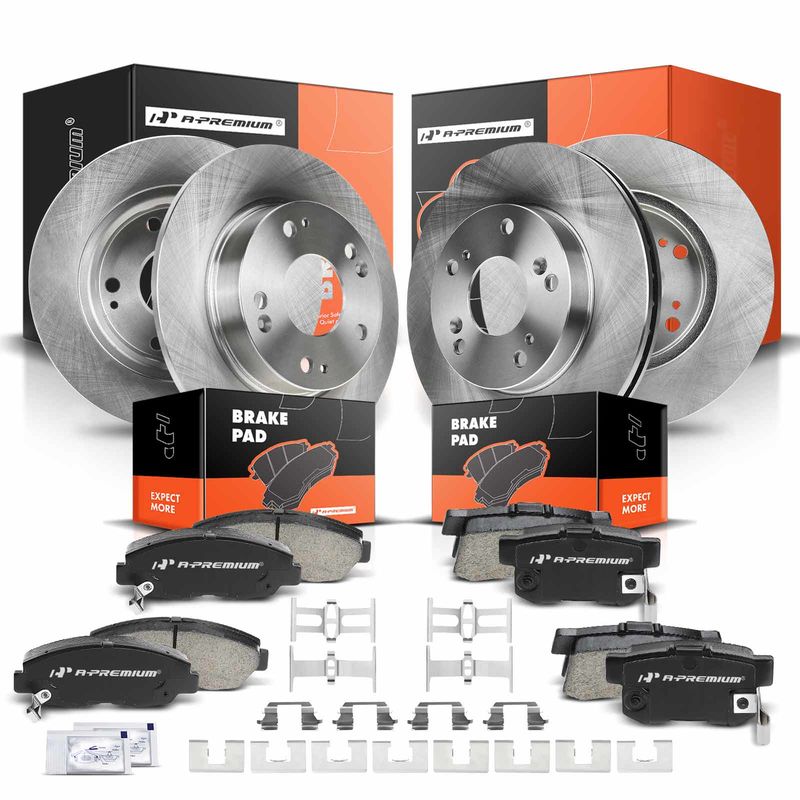

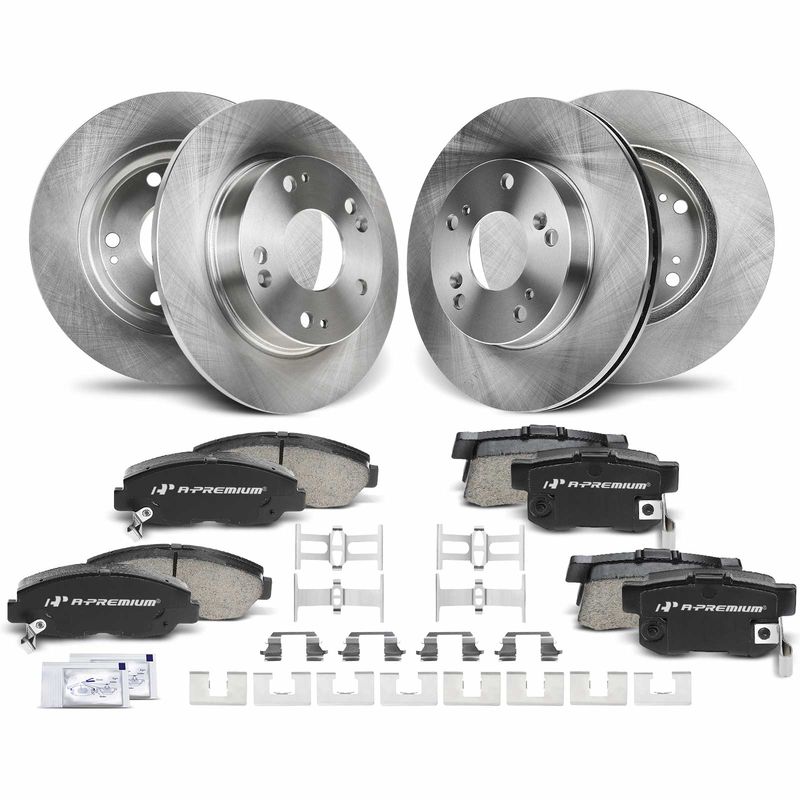

Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Honda Civic 2006-2011
Product Details
Rotor Outside Diameter (In):
10.30 (Front); 10.24 (Rear)
Slotted:
Yes (Front); No (Rear)
Outer Pad Thickness W/O Shim (In):
0.71 (Front); 0.57 (Rear)
Discard Min. Thickness (In):
0.75 (Front); 0.31 (Rear)
Outer Pad Width W/O Shim (In):
5.43 (Front); 3.50 (Rear)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
2.53 (Front); 2.52 (Rear)
Inner Pad Thickness W/O Shim (In):
0.71 (Front); 0.57 (Rear)
Backing Material:
Iron
Rotor Height (In):
1.85 (Front); 1.66 (Rear)
Pad Wear Sensor Included:
Yes
Bolt Diameter (In):
0.50
Mounting Bolt Hole Quantity:
5
Notes:
The Front Disc Brake Rotors With 10.3 Inch (261.5 Mm) Outside Diameter And The Rear With 10.24 Inch (260 Mm) Outside Diameter Fit The 4-wheel Disc Brake Model With 5-stud Wheel.
Solid Or Vented Type Rotor:
Vented (Front); Solid (Rear)
Inner Pad Width W/O Shim (In):
5.43 (Front); 3.50 (Rear)
Outer Pad Height W/O Shim (In):
2.07 (Front); 1.87 (Rear)
Nominal Thickness (In):
0.83 (Front); 0.35 (Rear)
Rotor Material:
Cast Iron
Brake Lubricant Included:
Yes
Inner Pad Height W/O Shim (In):
2.07 (Front); 1.87 (Rear)
Bolt Circle Diameter (In):
4.50
Product Number:
R31311,45251S6M000,4525156M000,45251SNA000,45251SNEA00,P465A,10307640,SBC465AK2,D465A,BP764C,R31420,
