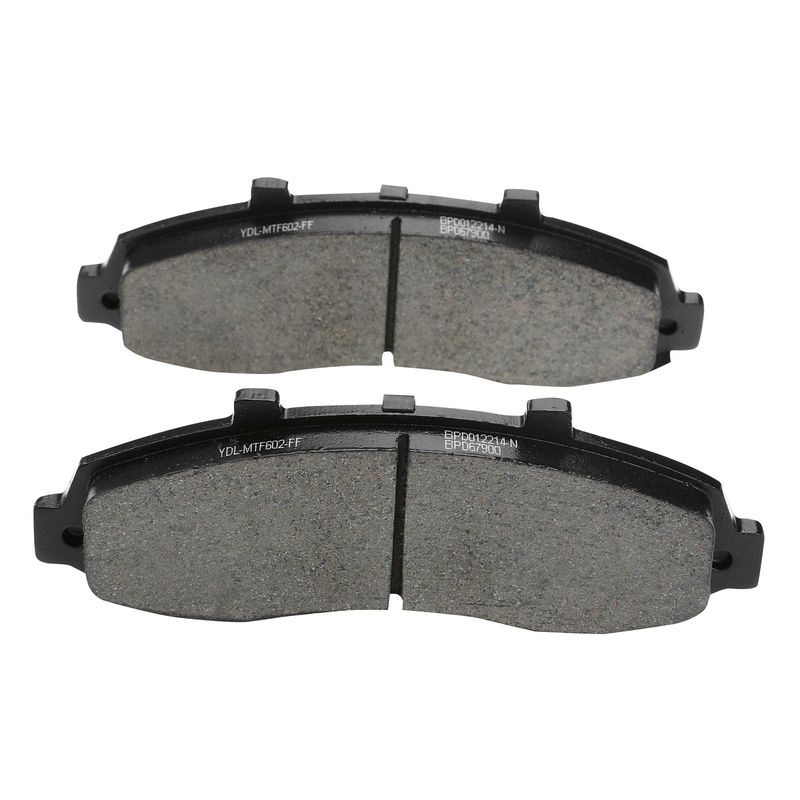

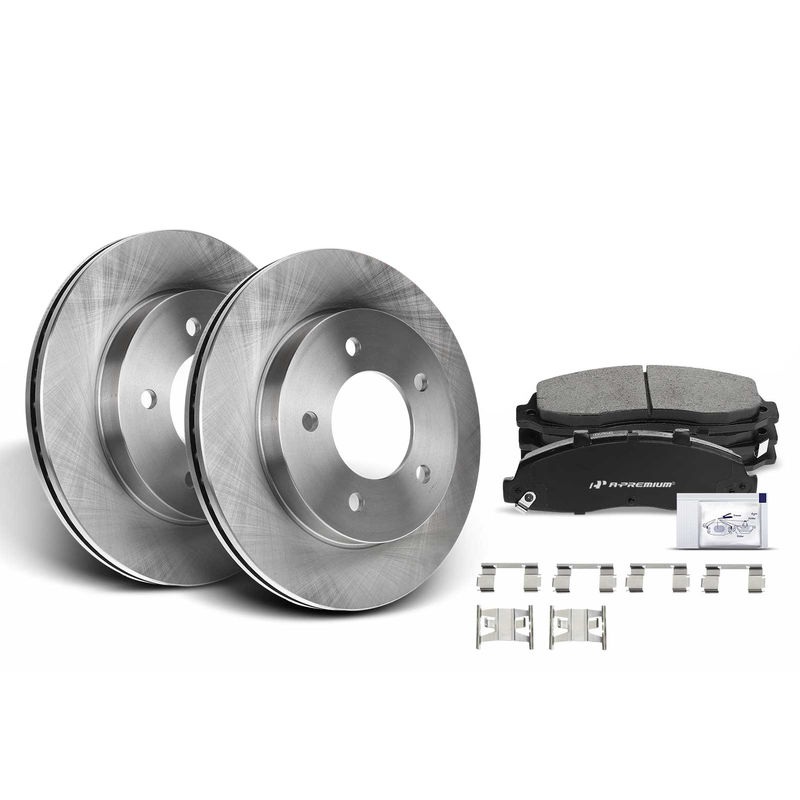

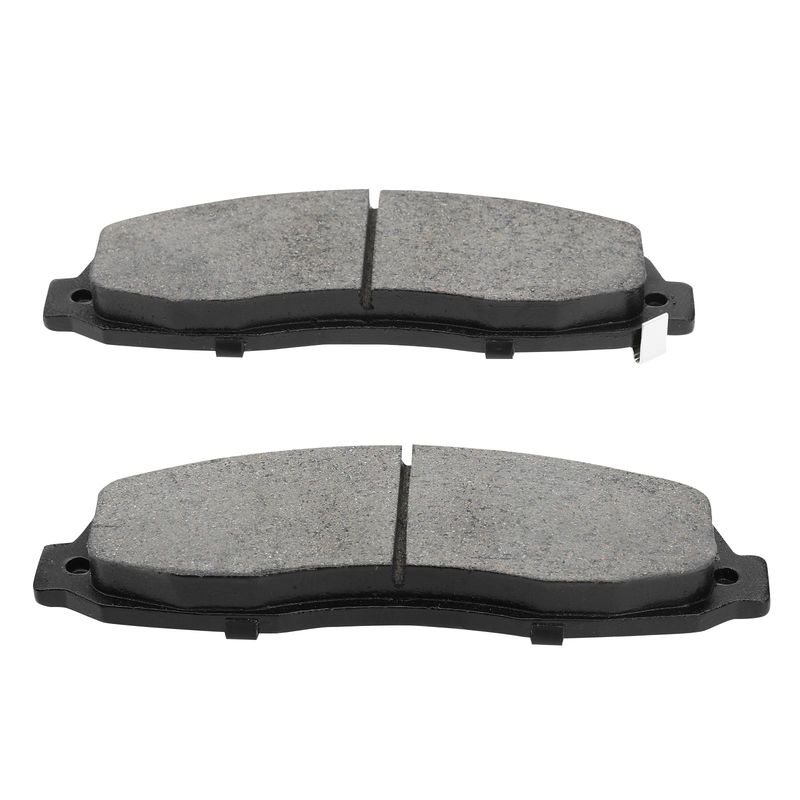

Front Disc Brake Rotors & Ceramic Brake Pads for Ford F-150 1997-1998 4WD
Product Details
Rotor Outside Diameter (In):
12.13
Slotted:
Yes
Outer Pad Thickness W/O Shim (In):
0.64
Discard Min. Thickness (In):
0.96
Outer Pad Width W/O Shim (In):
6.54
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
3.54
Inner Pad Thickness W/O Shim (In):
0.64
Backing Material:
Iron
Brake Lubricant Included:
Yes
Rotor Height (In):
2.05
Pad Wear Sensor Included:
Yes
Pad Wear Sensor Type:
Mechanical
Notes:
The Rotors With 308.1 Mm Outside Diameter Only Fit The 4WD(Four Wheel Drive) Model With 5-lug Wheel.
Mounting Bolt Hole Quantity:
5
Bolt Diameter (In):
5.31
Solid Or Vented Type Rotor:
Vented
Inner Pad Width W/O Shim (In):
6.54
Outer Pad Height W/O Shim (In):
2.26
Nominal Thickness (In):
1.01
Rotor Material:
Cast Iron
Mounting Hardware Included:
Yes
Inner Pad Height W/O Shim (In):
2.26
Bolt Circle Diameter (In):
5.31
Product Number:
R54042,P679,F65Z1125AC,XL3Z1125CB,12065057,09778711,BD125512E,PRT5146,66630
