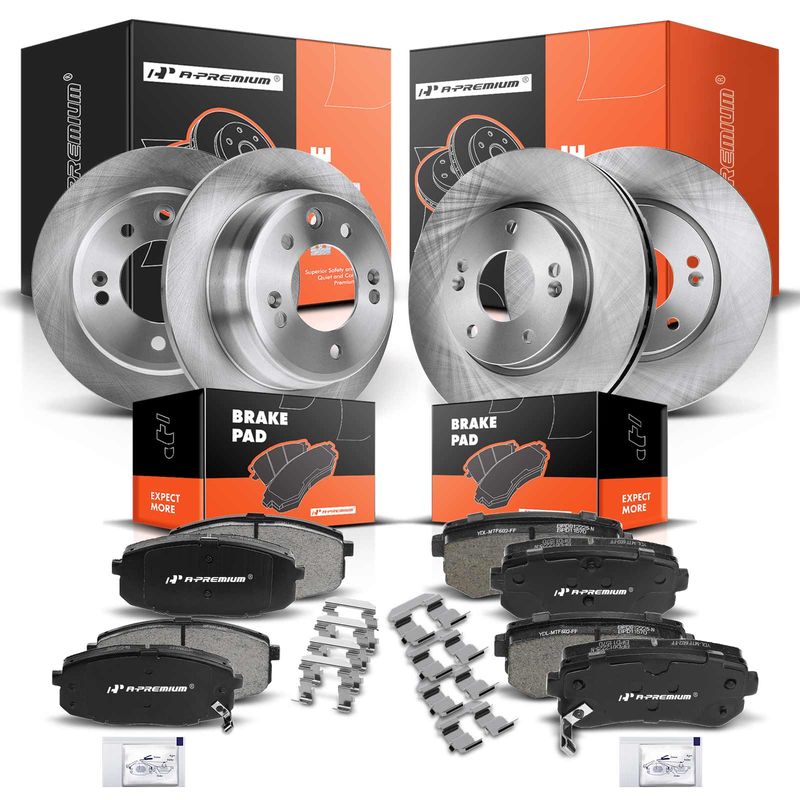

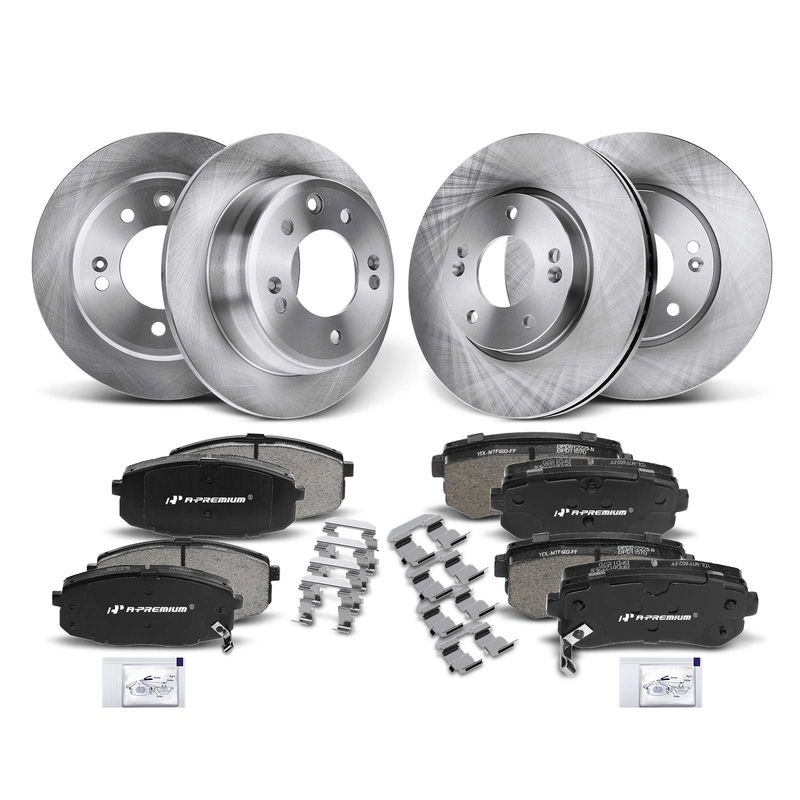

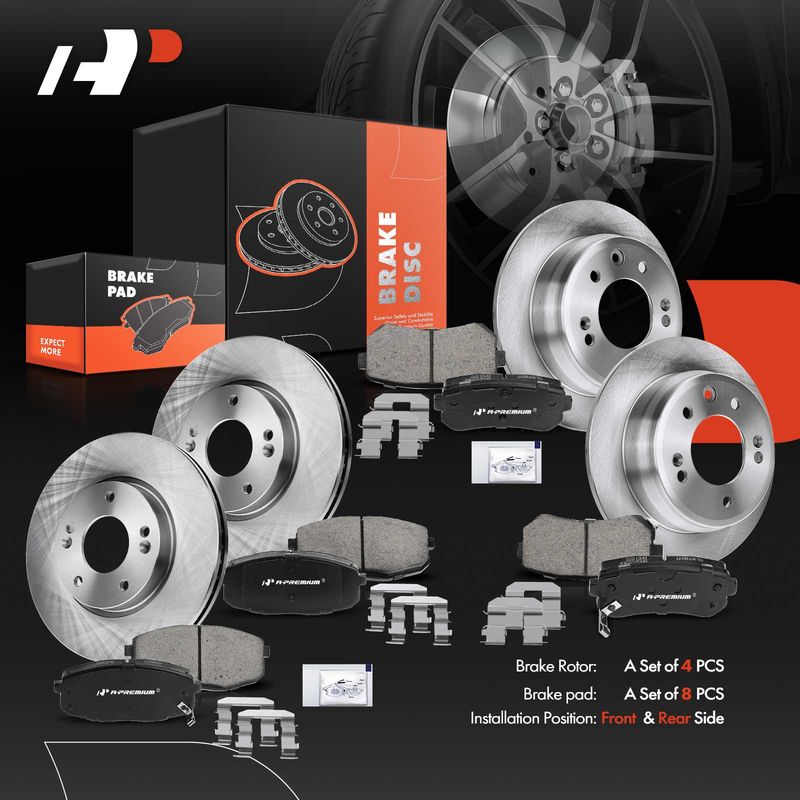

Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Hyundai Elantra 11-12
Product Details
Rotor Outside Diameter (In):
11.02 (Front); 10.31 (Rear)
Slotted:
Yes
Outer Pad Thickness W/O Shim (In):
0.67 (Front); 0.59 (Rear)
Discard Min. Thickness (In):
0.96 (Front)
Outer Pad Width W/O Shim (In):
5.12 (Front); 3.67 (Rear)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
2.72 (Front)
Inner Pad Thickness W/O Shim (In):
0.67 (Front); 0.59 (Rear)
Backing Material:
Iron
Rotor Height (In):
1.86 (Front)
Pad Wear Sensor Included:
Yes
Bolt Diameter (In):
0.5 (Front)
Mounting Bolt Hole Quantity:
5
Notes:
The Front Disc Brake Rotors With 11.02 Inch (280 Mm) Outside Diameter And The Rear With 10.31 Inch (262 Mm) Outside Diameter Fit The 5-stud Wheel.
Solid Or Vented Type Rotor:
Vented (Front); Solid (Rear)
Inner Pad Width W/O Shim (In):
5.12 (Front); 3.67 (Rear)
Outer Pad Height W/O Shim (In):
2.28 (Front); 1.61 (Rear)
Nominal Thickness (In):
1.03 (Front)
Rotor Material:
Cast Iron
Brake Lubricant Included:
Yes
Inner Pad Height W/O Shim (In):
2.28 (Front); 1.61 (Rear)
Bolt Circle Diameter (In):
4.5 (Front)
Product Number:
R31337, JBR1136, 60003016, JBR1136SCR, 28010832, 32051015, PRT5831, 980419FZN, P1397, SBC1397,103139
