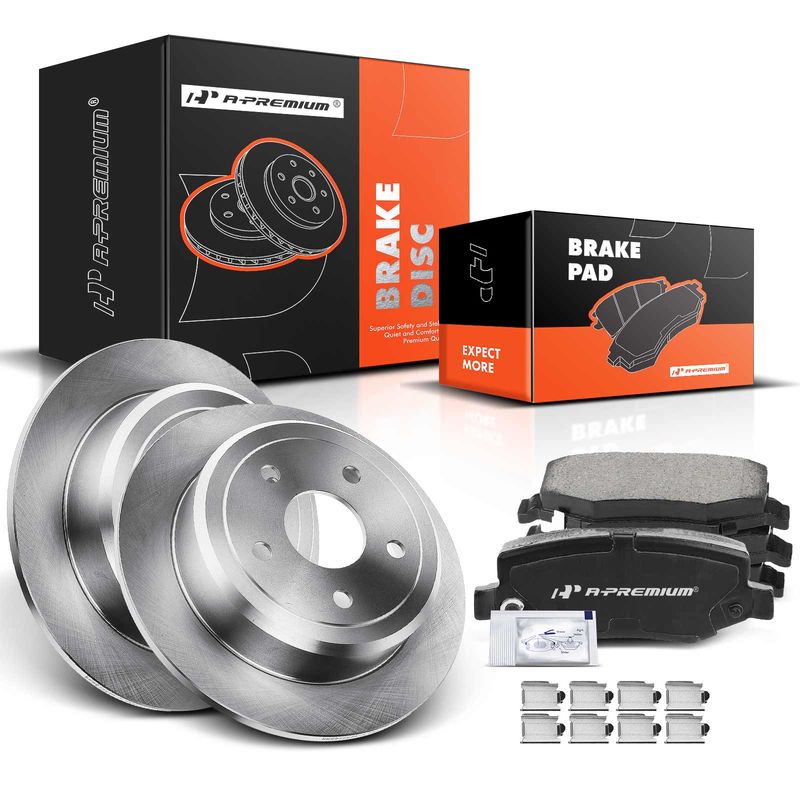

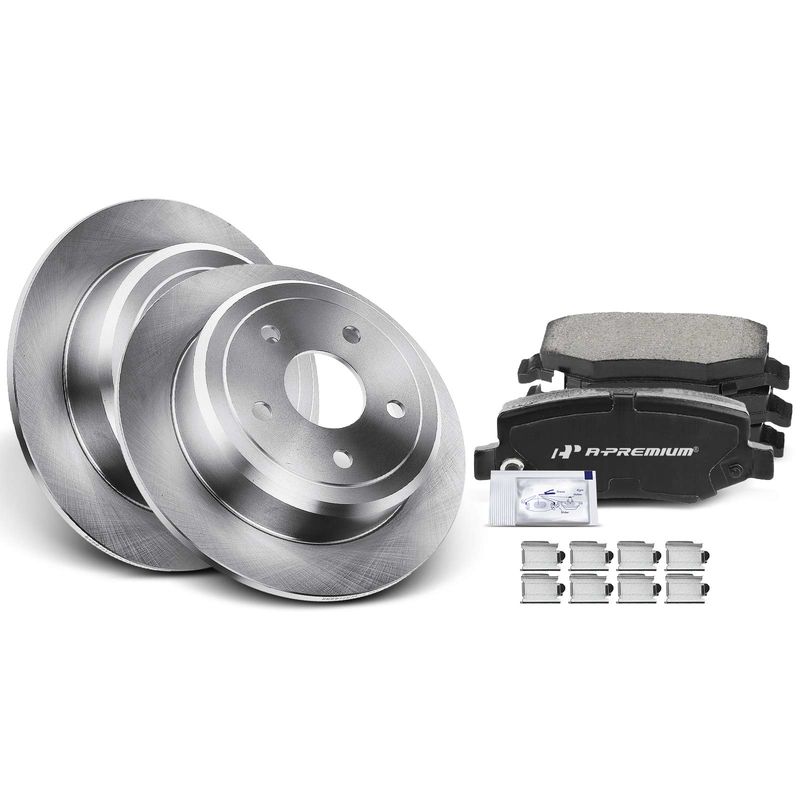

Rear Disc Brake Rotors & Ceramic Brake Pads for Jeep Wrangler 07-17 Wrangler JK
Product Details

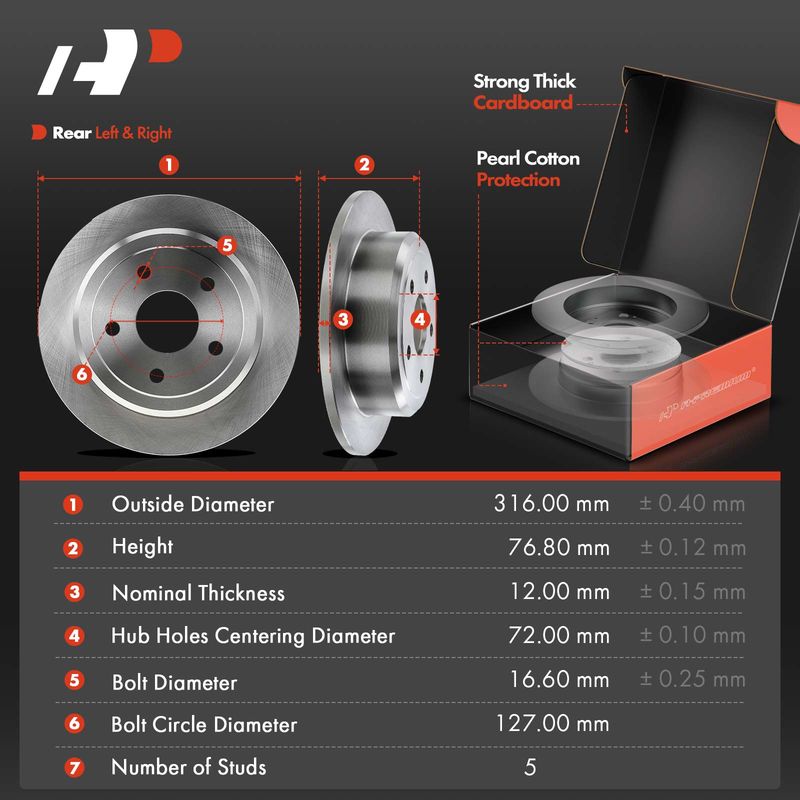

Rotor Outside Diameter (In):
12.44
Slotted:
No
Outer Pad Thickness W/O Shim (In):
0.63
Discard Min. Thickness (In):
0.41
Outer Pad Width W/O Shim (In):
4.59
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
2.84
Inner Pad Thickness W/O Shim (In):
0.63
Backing Material:
Iron
Brake Lubricant Included:
Yes
Rotor Height (In):
3.01
Pad Wear Sensor Included:
Yes
Pad Wear Sensor Type:
Mechanical
Notes:
The Rotors With 12.44 Inch (316 Mm) Outside Diameter Fit The 5-stud Wheel.
Mounting Bolt Hole Quantity:
5
Bolt Diameter (In):
0.65
Solid Or Vented Type Rotor:
Solid
Inner Pad Width W/O Shim (In):
4.59
Outer Pad Height W/O Shim (In):
1.78
Nominal Thickness (In):
0.47
Rotor Material:
Cast Iron
Mounting Hardware Included:
Yes
Inner Pad Height W/O Shim (In):
1.78
Bolt Circle Diameter (In):
5.00
Product Number:
R53041,63142029L,63142029R,AR8382XPR, P1274, CFC1274,30112740,ZD1274,QC1274
