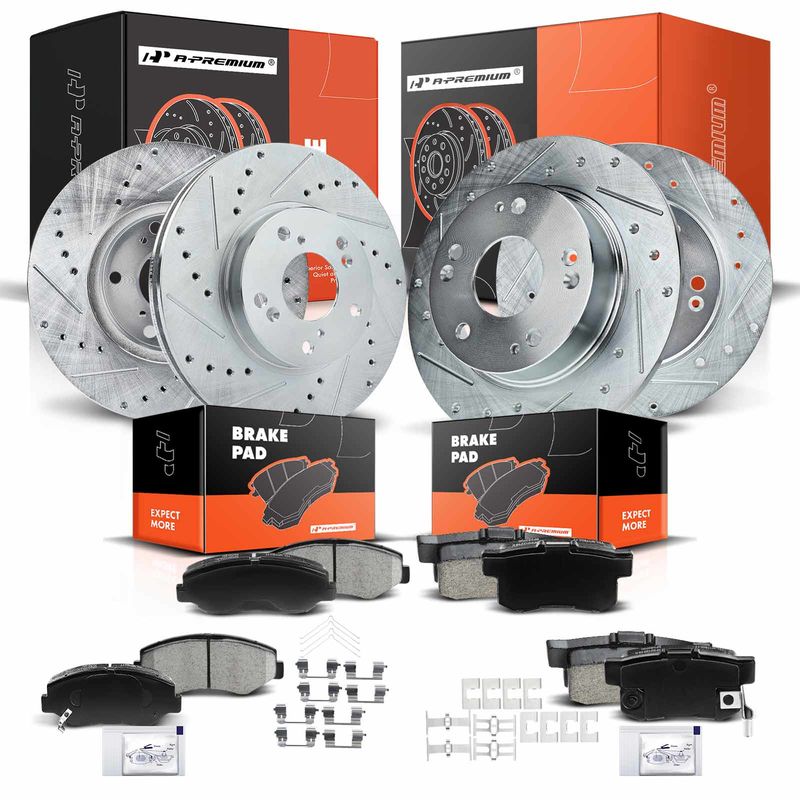

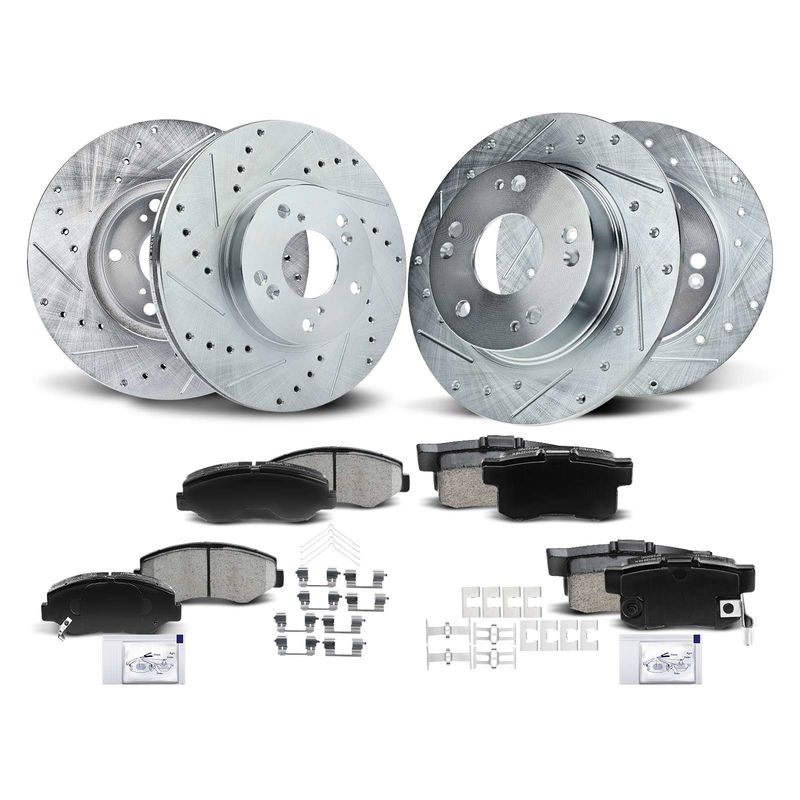

Front & Rear Drilled Rotors & Ceramic Brake Pads for Honda Accord 2003-2007
Product Details
Rotor Outside Diameter (In):
11.1 (Front); 10.24 (Rear)
Slotted:
Yes (Front); No (Rear)
Outer Pad Thickness W/O Shim (In):
0.67 (Front); 0.57 (Rear)
Discard Min. Thickness (In):
0.83 (Front); 0.31 (Rear)
Outer Pad Width W/O Shim (In):
5.58 (Front); 3.5 (Rear)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
2.53 (Front); 2.52 (Rear)
Inner Pad Thickness W/O Shim (In):
0.67 (Front); 0.57 (Rear)
Backing Material:
Iron
Brake Lubricant Included:
Yes
Rotor Height (In):
1.85 (Front); 1.92 (Rear)
Pad Wear Sensor Included:
Yes
Pad Wear Sensor Type:
Mechanical
Notes:
The Front Rotor Diameter Is 11.1 Inch (282mm) And The Rear Is 10.24 Inch (260mm), And They Only Fit The L4 2.4L Coupe & Sedan Model With 4-Wheel Disc Brakes.
Mounting Bolt Hole Quantity:
5
Bolt Diameter (In):
0.50
Solid Or Vented Type Rotor:
Vented (Front); Solid (Rear)
Inner Pad Width W/O Shim (In):
5.58 (Front); 3.5 (Rear)
Outer Pad Height W/O Shim (In):
2.23 (Front); 1.87 (Rear)
Nominal Thickness (In):
0.91 (Front); 0.35 (Rear)
Rotor Material:
Cast Iron
Mounting Hardware Included:
Yes
Inner Pad Height W/O Shim (In):
2.23 (Front); 1.87 (Rear)
Bolt Circle Diameter (In):
4.50
Product Number:
S31257,P914,10309140,D914,1310091403,0856698,30109142,1551091403,S31315,63159029L,63159029R,63359029
