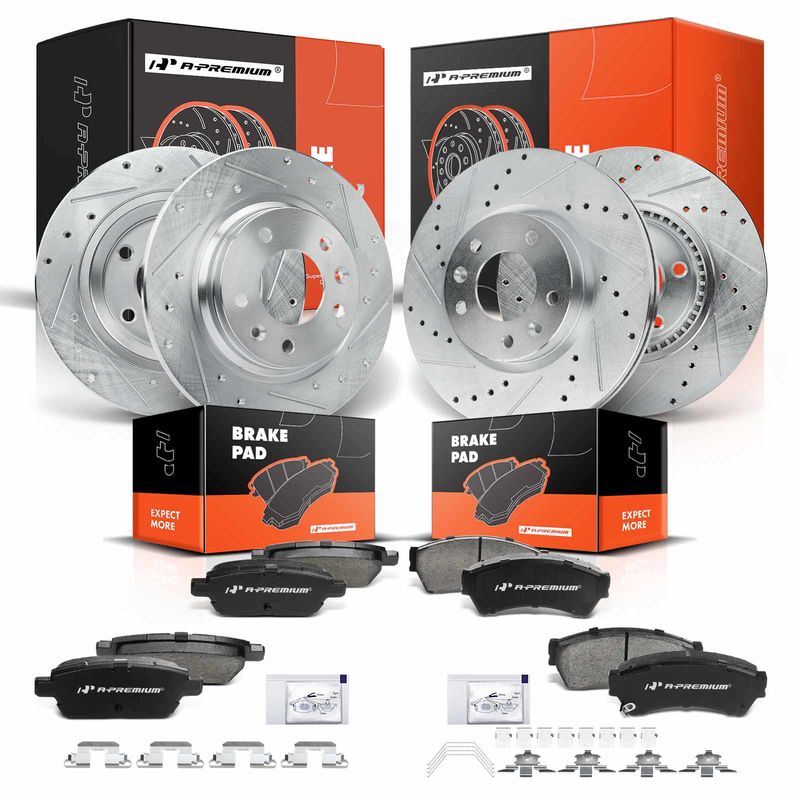

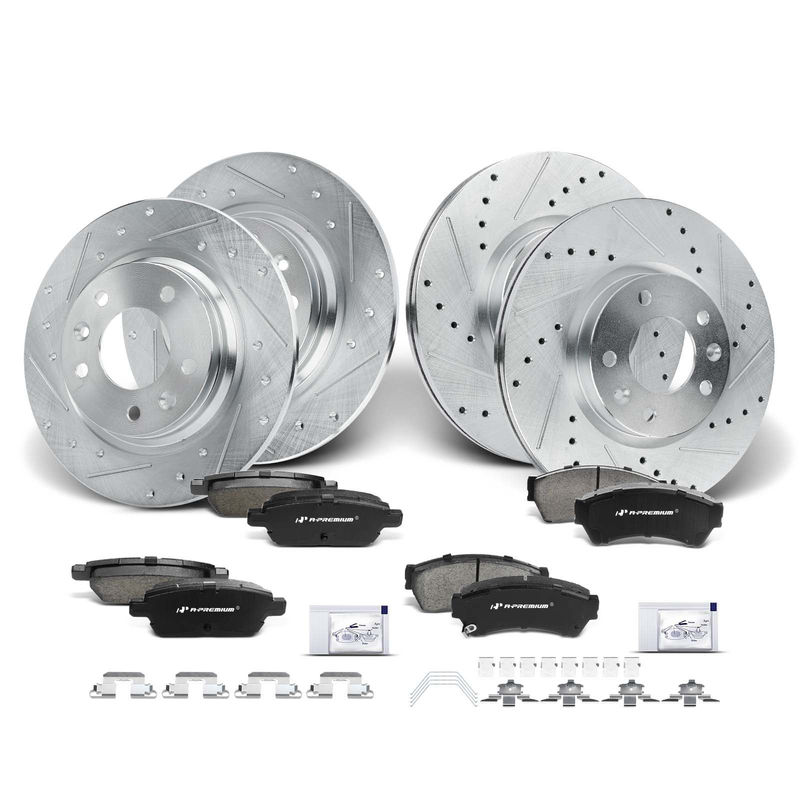

Front & Rear Drilled Rotors & Ceramic Brake Pads for Ford Fusion Mazda 6 Lincoln
Product Details

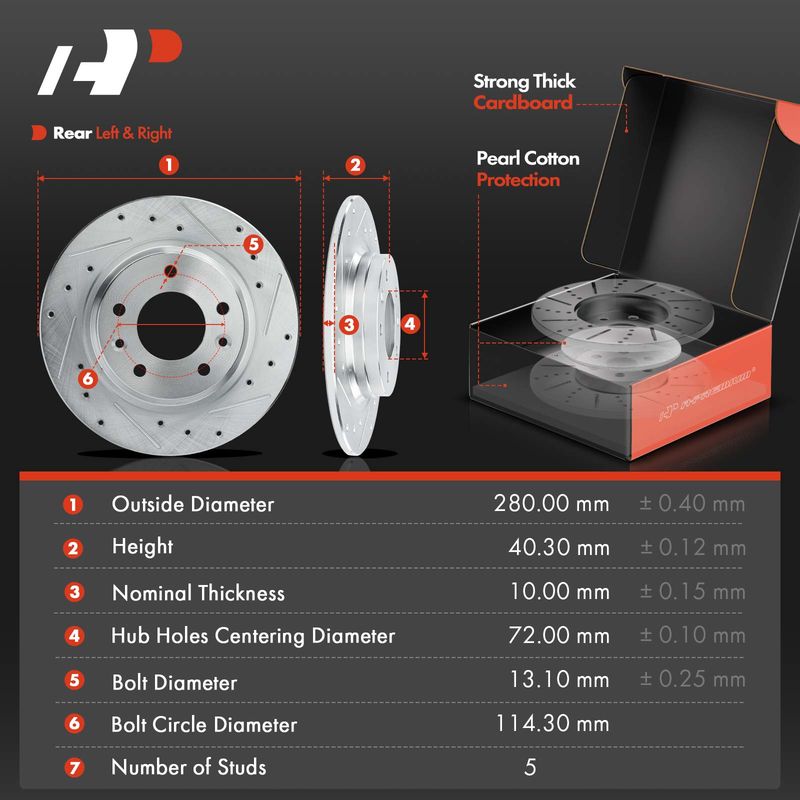

Rotor Outside Diameter (In):
11.77 (Front); 11 (Rear)
Slotted:
Yes (Front); No (Rear)
Outer Pad Thickness W/O Shim (In):
0.69 (Front); 0.57 (Rear)
Discard Min. Thickness (In):
0.91 (Front); 0.31 (Rear)
Outer Pad Width W/O Shim (In):
5.38 (Front); 4.35 (Rear)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
2.84 (Front); 2.82 (Rear)
Inner Pad Thickness W/O Shim (In):
0.69 (Front); 0.57 (Rear)
Backing Material:
Iron
Rotor Height (In):
1.91 (Front); 1.58 (Rear)
Pad Wear Sensor Included:
Yes (Front); No (Rear)
Bolt Diameter (In):
0.52 (Front); 0.51 (Rear)
Mounting Bolt Hole Quantity:
5
Solid Or Vented Type Rotor:
Vented (Front); Solid (Rear)
Inner Pad Width W/O Shim (In):
5.38 (Front); 4.35 (Rear)
Outer Pad Height W/O Shim (In):
2.32 (Front); 1.67 (Rear)
Nominal Thickness (In):
0.98 (Front); 0.39 (Rear)
Rotor Material:
Cast Iron
Brake Lubricant Included:
Yes
Inner Pad Height W/O Shim (In):
2.32 (Front); 1.67 (Rear)
Bolt Circle Diameter (In):
4.49 (Front); 4.5 (Rear)
Product Number:
S54142,63154059R,63354059L,63354059R,JBR1154XPR,63154059R,63354059L,63354059R,P1164,1310116401,ZD116
