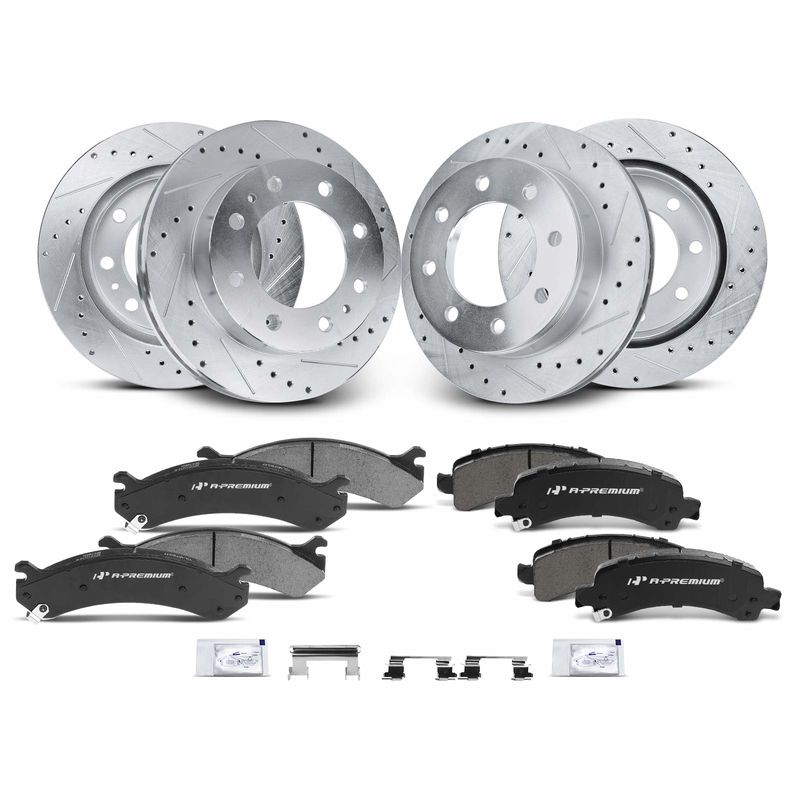

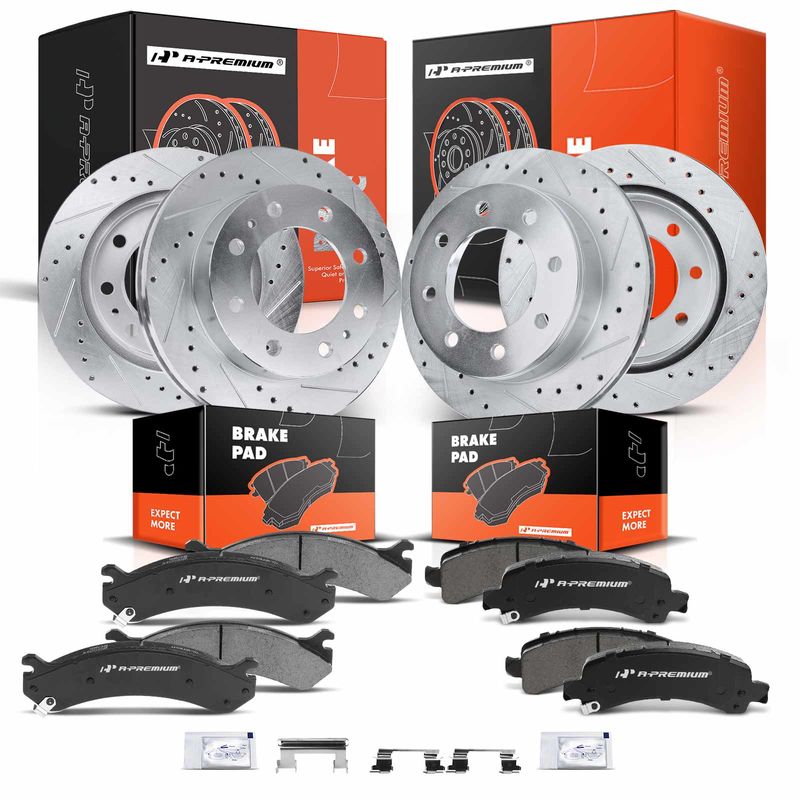

Name: 12x Front & Rear Drilled Rotors & Ceramic Pads for Chevy Express GMC Savana
Brand: 12x Front & Rear Drilled Rotors & Ceramic Pads for Chevy Express GMC Savana
SKU: 12x Front & Rear Drilled Rotors & Ceramic Pads for Chevy Express GMC Savana
Price: 1 USD
Availability: InStock
Rating: 4.9 (122 reviews)

Home > products > Brake Discs, Pads & Calipers >

12x Front & Rear Drilled Rotors & Ceramic Pads for Chevy Express GMC Savana

Request A Quote

Product Details

Rotor Outside Diameter (in):

12.78 (Front); 12.99 (Rear)

Slotted:

Yes

Outer Pad Thickness W/o Shim (in):

0.72 (Front); 0.79 (Rear)

Discard Min. Thickness (in):

1.44 (Front); 1.04 (Rear)

Outer Pad Width W/o Shim (in):

8.51 (Front); 6.8 (Rear)

Friction Material Composition:

Ceramic

Hub Holes Centering Diameter (in):

4.65 (Front); 4.63 (Rear)

Inner Pad Thickness W/o Shim (in):

0.72 (Front); 0.79 (Rear)

Backing Material:

Iron

Rotor Height (in):

3.52 (Front); 3.37 (Rear)

Pad Wear Sensor Included:

Yes

Pad Wear Sensor Type:

Mechanical

Notes:

The Front Drilled Brake Rotors With 12.78 Inch (324.6 Mm) Outside Diameter And The Rear With 12.99 Inch (330 Mm) Outside Diameter Fit The 8-stud Wheel.

Mounting Bolt Hole Quantity:

Bolt Diameter (in):

0.65

Solid Or Vented Type Rotor:

Vented

Inner Pad Width W/o Shim (in):

8.51 (Front); 6.8 (Rear)

Outer Pad Height W/o Shim (in):

2.64 (Front); 2.36 (Rear)

Nominal Thickness (in):

1.49 (Front); 1.14 (Rear)

Rotor Material:

Cast Iron

Brake Lubricant Included:

Yes

Inner Pad Height W/o Shim (in):

2.64 (Front); 2.36 (Rear)

Bolt Circle Diameter (in):

6.50

Product Number:

P784,FVC784,ZD784,CFC784,SBC784,15886468,18026219,18042334,18044594,P785,17785,SBC785,BE785H,MGD785M
