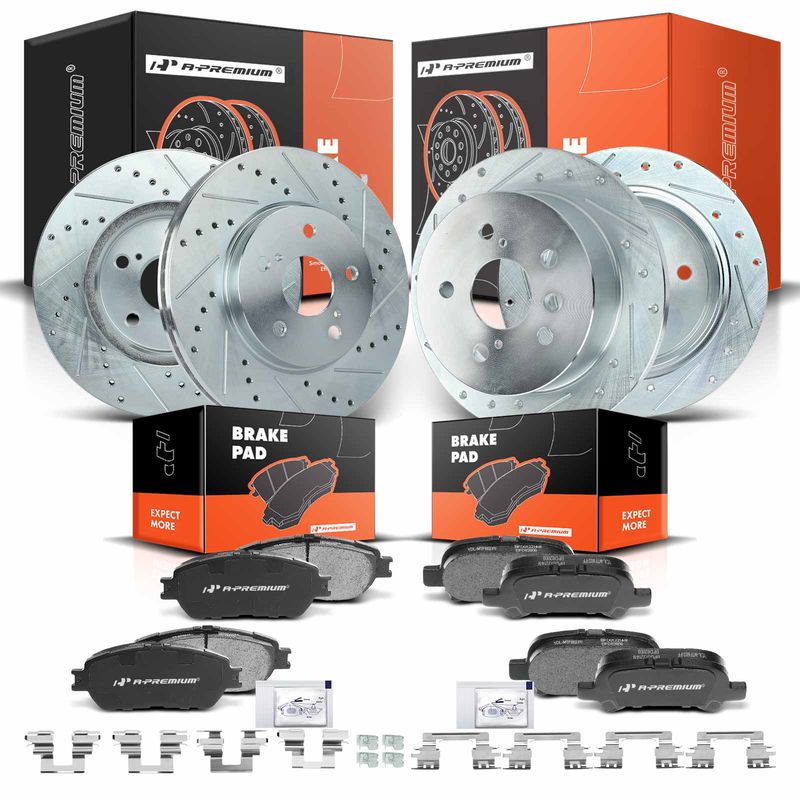

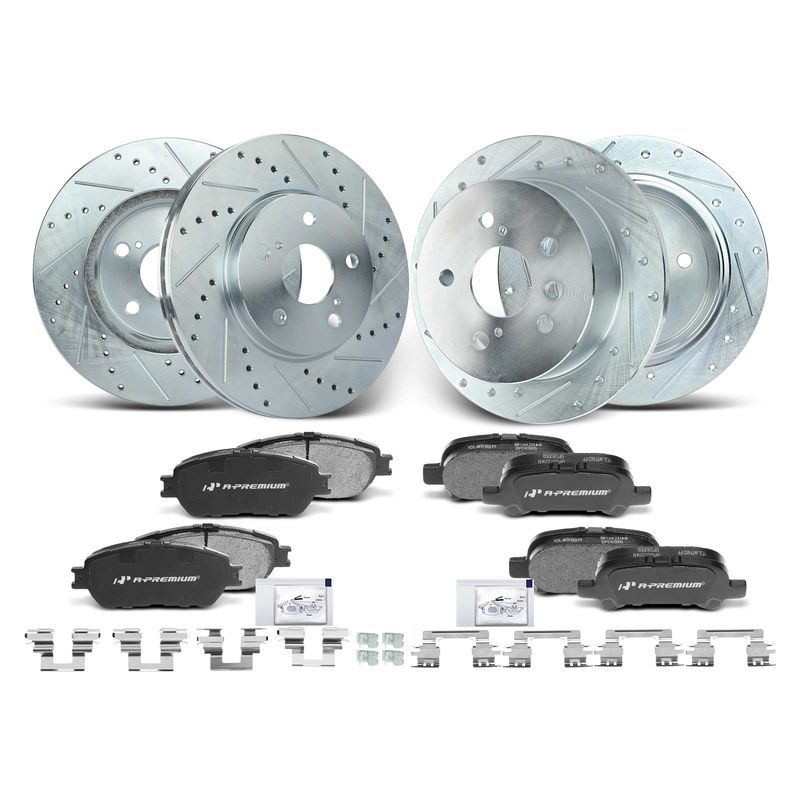

Front & Rear Drilled Rotors & Ceramic Brake Pads for Toyota Camry Avalon Solara
Product Details
Rotor Outside Diameter (In):
11.65 (Front); 10.59 (Rear)
Slotted:
Yes (Front); No (Rear)
Outer Pad Thickness W/O Shim (In):
0.63 (Front); 0.6 (Rear)
Discard Min. Thickness (In):
1.02 (Front); 0.41 (Rear)
Outer Pad Width W/O Shim (In):
5.64 (Front); 3.92 (Rear)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
2.44
Inner Pad Thickness W/O Shim (In):
0.63 (Front); 0.6 (Rear)
Backing Material:
Iron
Rotor Height (In):
1.94 (Front); 2.56 (Rear)
Pad Wear Sensor Included:
No
Bolt Diameter (In):
0.58 (Front); 0.57 (Rear)
Mounting Bolt Hole Quantity:
5
Notes:
The Front Disc Brake Rotor Outside Diameter Is 11.65 Inch (296 Mm) And The Rear Is 10.59 Inch (269 Mm).
Solid Or Vented Type Rotor:
Vented (Front); Solid (Rear)
Inner Pad Width W/O Shim (In):
5.64 (Front); 3.92 (Rear)
Outer Pad Height W/O Shim (In):
2.3 (Front); 1.73 (Rear)
Nominal Thickness (In):
1.1 (Front); 0.47 (Rear)
Rotor Material:
Cast Iron
Brake Lubricant Included:
Yes
Inner Pad Height W/O Shim (In):
2.3 (Front); 1.73 (Rear)
Bolt Circle Diameter (In):
4.50
Product Number:
S31314,JBR972XPR,63176075L,63176075R,P906,0446533350,0446508030,0446533270,0446504080,0446533280,S31
