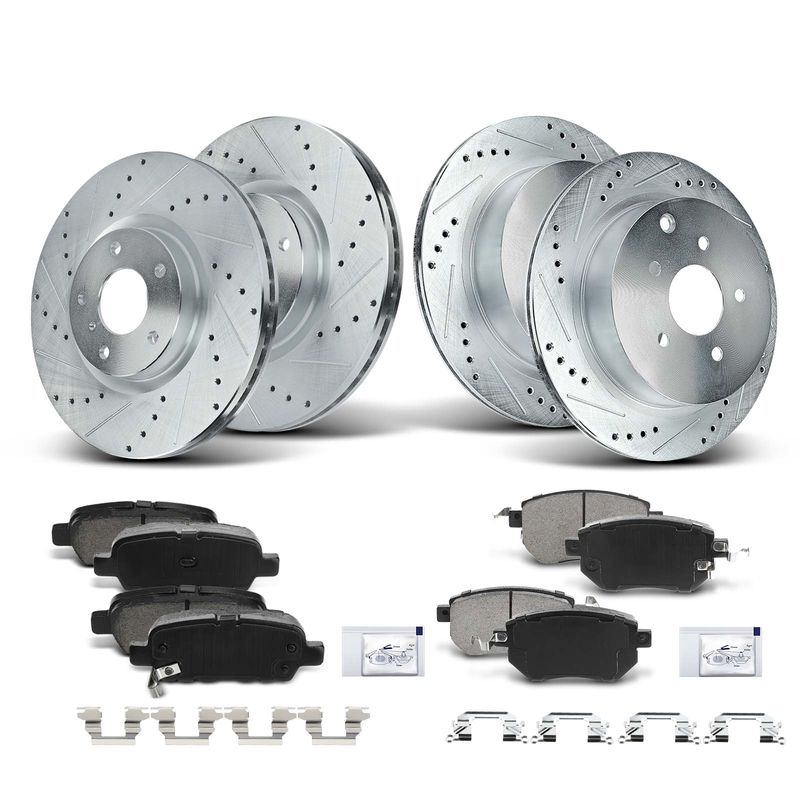

Front & Rear Drilled Rotors & Ceramic Brake Pads for Nissan Murano 2005-2007 2012
Product Details

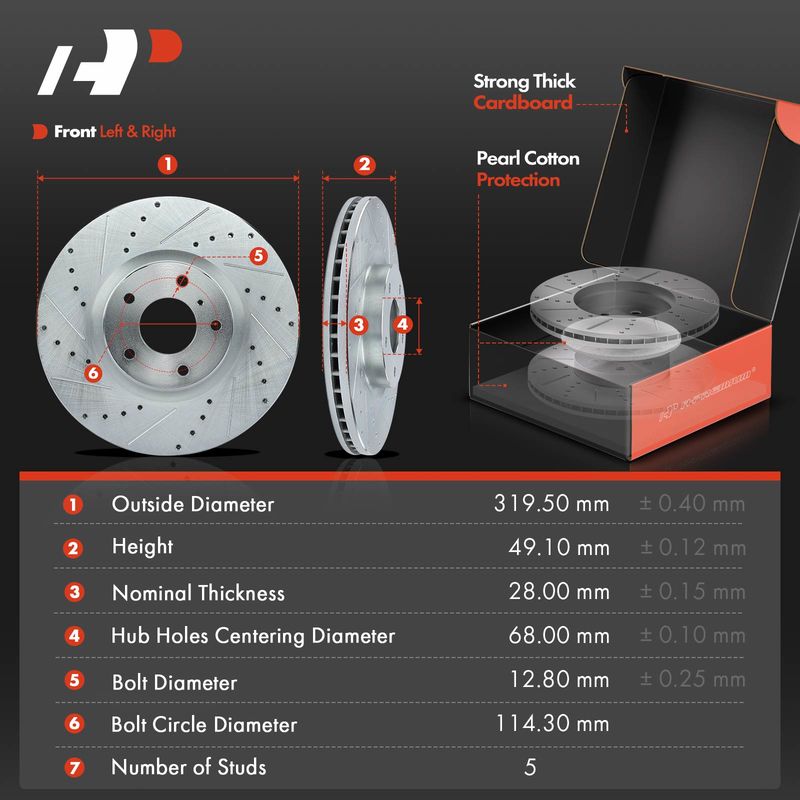

Rotor Outside Diameter (In):
12.58 (Front); 12.11 (Rear)
Slotted:
Yes
Outer Pad Thickness W/O Shim (In):
0.61 (Front); 0.56 (Rear)
Discard Min. Thickness (In):
1.02 (Front); 0.55 (Rear)
Outer Pad Width W/O Shim (In):
5.34 (Front); 4.15 (Rear)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
2.68
Inner Pad Thickness W/O Shim (In):
0.61 (Front); 0.56 (Rear)
Backing Material:
Iron
Rotor Height (In):
1.94 (Front); 2.44 (Rear)
Pad Wear Sensor Included:
Yes
Bolt Diameter (In):
0.51 (Front); 0.5 (Rear)
Mounting Bolt Hole Quantity:
5
Notes:
The Front Drilled Rotors With 12.60 Inch (320 Mm) Outside Diameter And The Rear With 12.23 Inch (308 Mm) Outside Diameter Fit The 5-stud Wheel.
Solid Or Vented Type Rotor:
Vented
Inner Pad Width W/O Shim (In):
5.34 (Front); 4.15 (Rear)
Outer Pad Height W/O Shim (In):
2.59 (Front); 1.5 (Rear)
Nominal Thickness (In):
1.11 (Front); 0.63 (Rear)
Rotor Material:
Cast Iron
Brake Lubricant Included:
Yes
Inner Pad Height W/O Shim (In):
2.59 (Front); 1.5 (Rear)
Bolt Circle Diameter (In):
4.50
Product Number:
S31375,31031375,301.31375,P969,FVC969,1310096901,ZD969,QC969,17D969CH,S31348,12142078,121.42078,BR31
