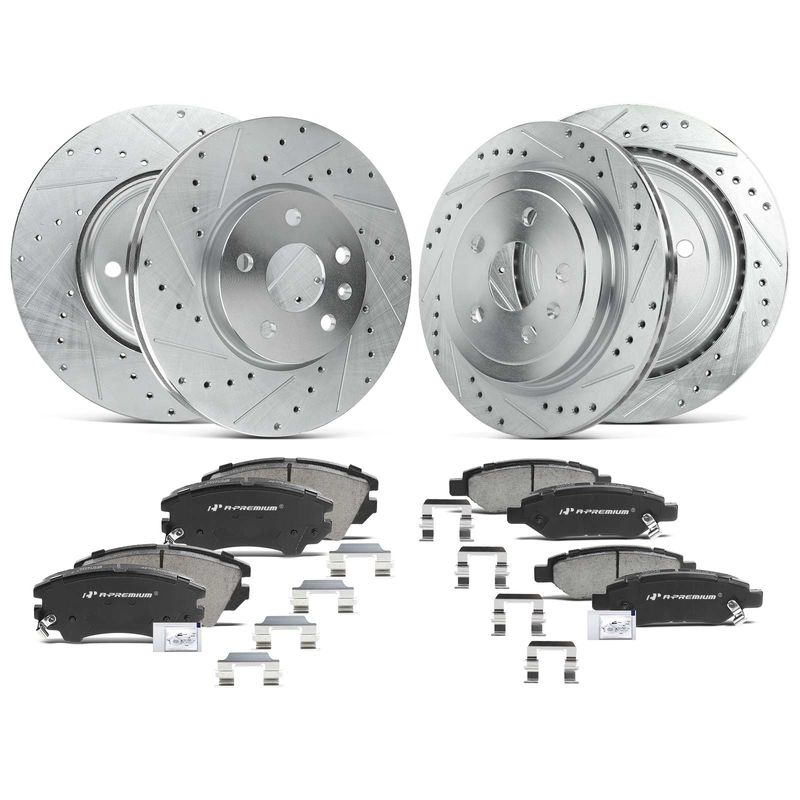

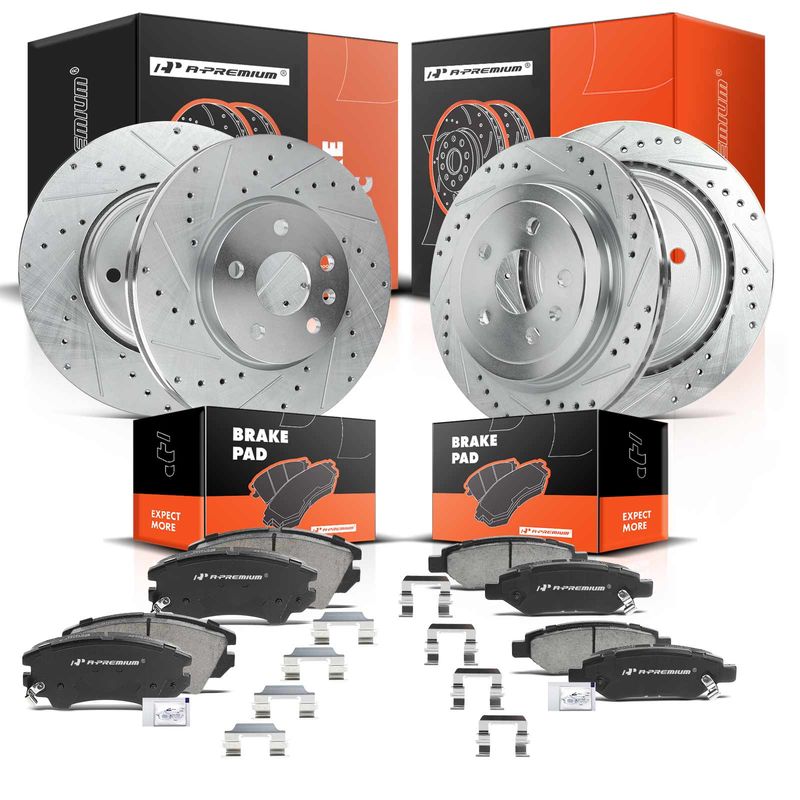

Front & Rear Drilled Rotors & Ceramic Brake Pads for Chevrolet Camaro 10-15
Product Details

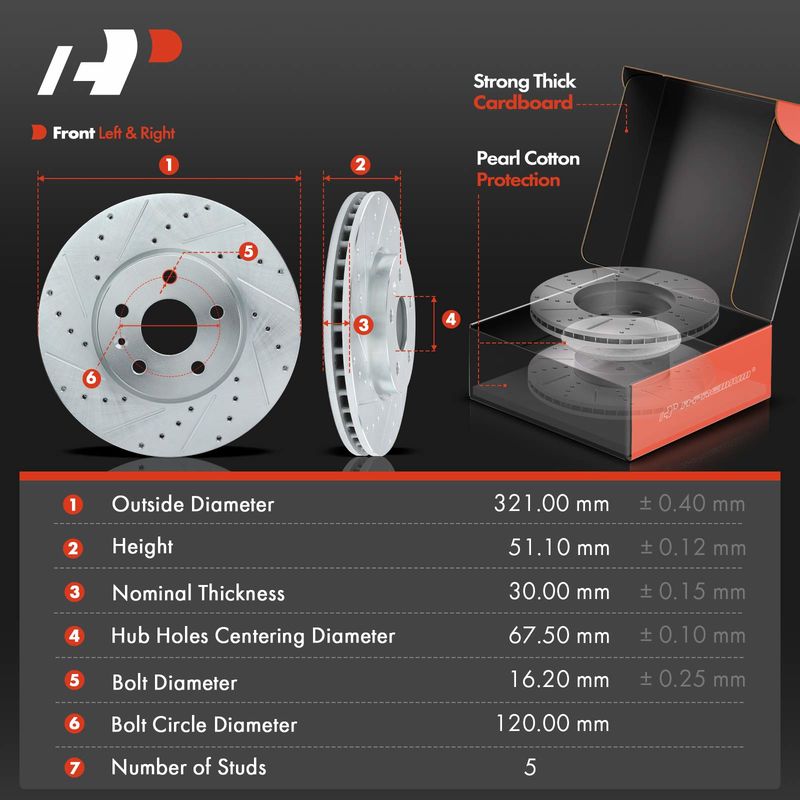

Rotor Outside Diameter (In):
12.64 (Front); 12.4 (Rear)
Slotted:
Yes
Outer Pad Thickness W/O Shim (In):
0.7 (Front); 0.65 (Rear)
Discard Min. Thickness (In):
1.06 (Front); 0.85 (Rear)
Outer Pad Width W/O Shim (In):
5.59 (Front); 5.42 (Rear)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
2.65
Inner Pad Thickness W/O Shim (In):
0.7 (Front); 0.65 (Rear)
Backing Material:
Iron
Rotor Height (In):
2.01 (Front); 1.89 (Rear)
Pad Wear Sensor Included:
Yes
Pad Wear Sensor Type:
Mechanical
Notes:
The Item Only Fits The V6 3.6L LS And LT Model.
Mounting Bolt Hole Quantity:
5
Bolt Diameter (In):
0.64 (Front); 0.65 (Rear)
Solid Or Vented Type Rotor:
Vented
Inner Pad Width W/O Shim (In):
5.59 (Front); 5.42 (Rear)
Outer Pad Height W/O Shim (In):
2.62 (Front); 1.81 (Rear)
Nominal Thickness (In):
1.18 (Front); 0.91 (Rear)
Rotor Material:
Cast Iron
Brake Lubricant Included:
Yes
Inner Pad Height W/O Shim (In):
2.62 (Front); 1.81 (Rear)
Bolt Circle Diameter (In):
4.72
Product Number:
S55174,63145017R,63145017L,P1404,PMD1404,FVC1404,BP1404C,ZD1404,QC1404,AD1404,S55171,63146024R,63146
