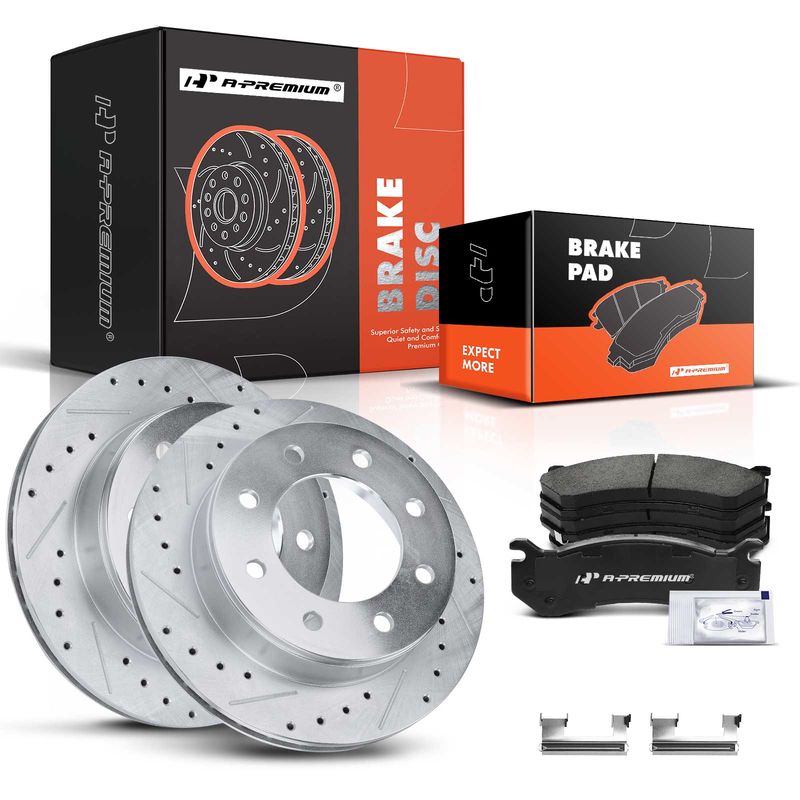

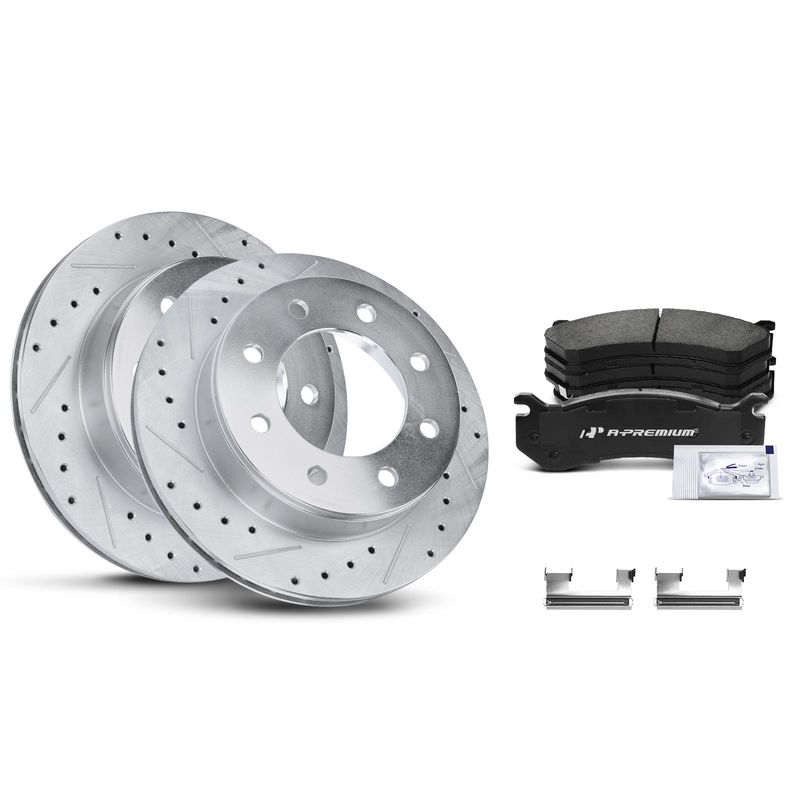

Rear Drilled Rotors & Ceramic Brake Pads for Chevy Suburban 2500 GMC Sierra 2500
Product Details

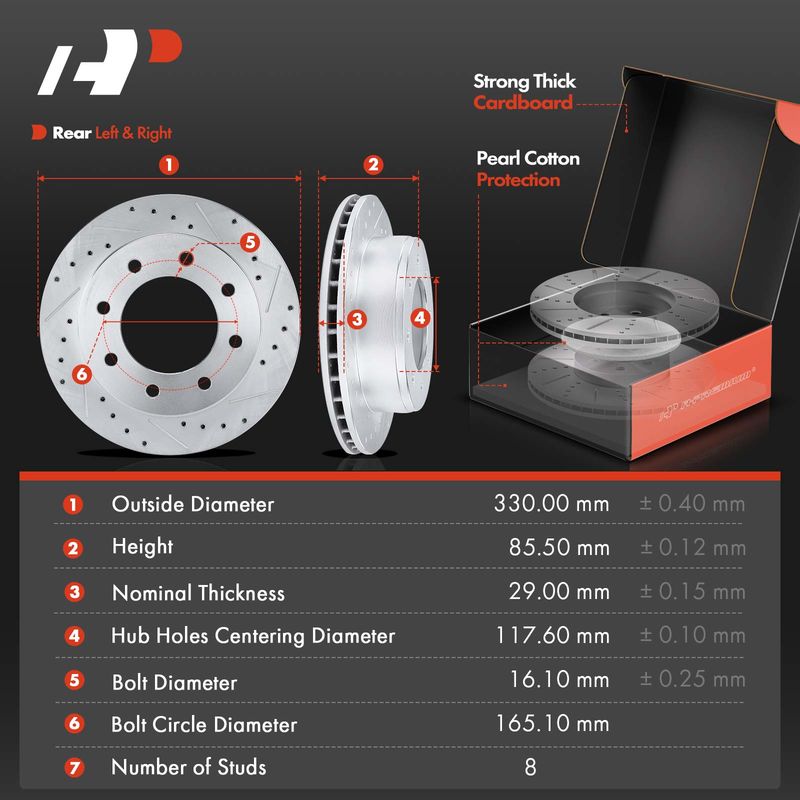

Rotor Outside Diameter (In):
12.99
Slotted:
Yes
Outer Pad Thickness W/O Shim (In):
0.73
Discard Min. Thickness (In):
1.04
Outer Pad Width W/O Shim (In):
6.97
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
4.63
Inner Pad Thickness W/O Shim (In):
0.73
Backing Material:
Iron
Rotor Height (In):
3.37
Pad Wear Sensor Included:
Yes
Pad Wear Sensor Type:
Mechanical
Notes:
The Rotor Diameter Is 12.99 Inch (330 Mm), And The Overall Height Is 86.86 Mm, And The Center Hole Diameter Is 4.63 Inch.
Mounting Bolt Hole Quantity:
5
Bolt Diameter (In):
0.65
Solid Or Vented Type Rotor:
Vented
Inner Pad Width W/O Shim (In):
6.97
Outer Pad Height W/O Shim (In):
2.35
Nominal Thickness (In):
1.14
Rotor Material:
Cast Iron
Brake Lubricant Included:
Yes
Inner Pad Height W/O Shim (In):
2.35
Bolt Circle Diameter (In):
6.5
Product Number:
S55057,P785,PRT5262,1056830,BD126536,BC785,10507850,1050785,30007850,3000785
