Front & Rear Drilled Rotors & Ceramic Brake Pads for Ford Mustang 94-04

Product Details

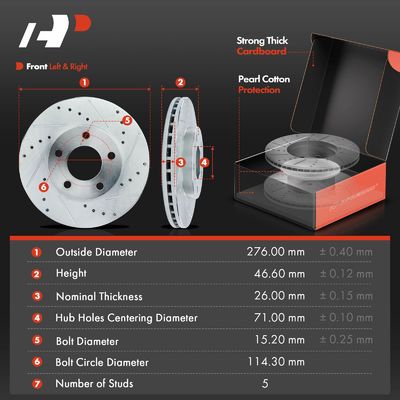

Rotor Outside Diameter (In): 10.87 (Front); 10.51 (Rear)
Slotted: Yes (Front); No (Rear)
Outer Pad Thickness W/O Shim (In): 0.61 (Front); 0.67 (Rear)
Discard Min. Thickness (In): 0.97 (Front); 0.5 (Rear)
Outer Pad Width W/O Shim (In): 7.22 (Front); 3.54 (Rear)
Friction Material Composition: Ceramic
Hub Holes Centering Diameter (In): 2.8 (Front); 2.79 (Rear)
Inner Pad Thickness W/O Shim (In): 0.61 (Front); 0.67 (Rear)
Backing Material: Iron
Brake Lubricant Included: Yes
Rotor Height (In): 1.83 (Front); 1.96 (Rear)
Bolt Diameter (In): 0.6 (Front); 0.57 (Rear)
Mounting Bolt Hole Quantity: 5
Notes: The Front Drilled Rotors With 276 Mm Outside Diameter And The Rear With 267 Mm Outside Diameter Only Fit The Base & GT Model With 5-stud Wheel.
Solid Or Vented Type Rotor: Vented (Front); Solid (Rear)
Inner Pad Width W/O Shim (In): 7.22 (Front); 3.54 (Rear)
Outer Pad Height W/O Shim (In): 2.39 (Front); 1.93 (Rear)
Nominal Thickness (In): 1.02 (Front); 0.55 (Rear)
Rotor Material: Cast Iron
Mounting Hardware Included: Yes
Inner Pad Height W/O Shim (In): 2.39 (Front); 1.93 (Rear)
Bolt Circle Diameter (In): 4.50
Product Number: S54011,P804,S54017,P627
