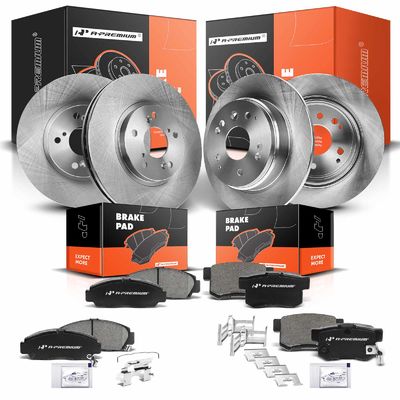

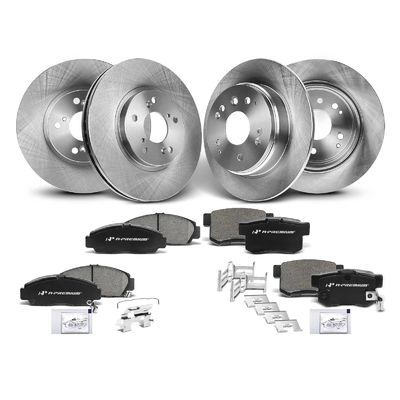

Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Acura TL 2004-2008 3.2L
Product Details
Rotor Outside Diameter (In):
11.81 (Front); 11.10 (Rear)
Slotted:
Yes (Front); No (Rear)
Outer Pad Thickness W/O Shim (In):
0.68 (Front); 0.57 (Rear)
Discard Min. Thickness (In):
1.02 (Front); 0.30 (Rear)
Outer Pad Width W/O Shim (In):
5.86 (Front); 3.50 (Rear)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
2.52 (Front); 2.53 (Rear)
Inner Pad Thickness W/O Shim (In):
0.68 (Front); 0.57 (Rear)
Backing Material:
Iron
Rotor Height (In):
1.86 (Front); 2.31 (Rear)
Pad Wear Sensor Included:
Yes
Pad Wear Sensor Type:
Mechanical
Notes:
The Item Fits The Non-Brembo Calipers.
Mounting Bolt Hole Quantity:
5
Bolt Diameter (In):
0.50 (Front); 0.49 (Rear)
Solid Or Vented Type Rotor:
Vented (Front); Solid (Rear)
Inner Pad Width W/O Shim (In):
5.86 (Front); 3.50 (Rear)
Outer Pad Height W/O Shim (In):
2.30 (Front); 1.87 (Rear)
Nominal Thickness (In):
1.10 (Front); 0.35 (Rear)
Rotor Material:
Cast Iron
Brake Lubricant Included:
Yes
Inner Pad Height W/O Shim (In):
2.30 (Front); 1.87 (Rear)
Bolt Circle Diameter (In):
4.50
Product Number:
R31275,0832822,12040046,96795FZN,PRT5287,96795R,P1506,SBC1506,CFC1506,R31316,980151R,PRT5423,1214006
Send An Inquiry
