Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Chevrolet Impala Olds
Product Details

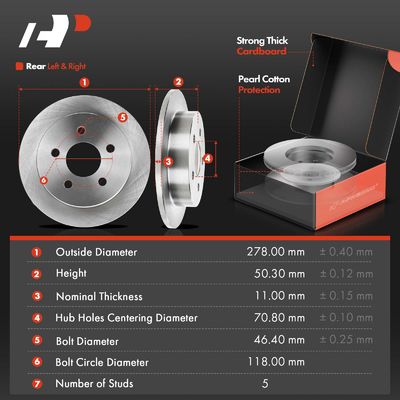

Rotor Outside Diameter (In):
11.93 (Front); 10.94 (Rear)
Slotted:
No (Front); Yes (Rear)
Outer Pad Thickness W/O Shim (In):
0.67 (Front); 0.54 (Rear)
Discard Min. Thickness (In):
1.22 (Front); 0.35 (Rear)
Outer Pad Width W/O Shim (In):
5.83 (Front); 4.24 (Rear)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
2.78
Inner Pad Thickness W/O Shim (In):
0.67 (Front); 0.54 (Rear)
Backing Material:
Iron
Brake Lubricant Included:
Yes
Rotor Height (In):
2.04 (Front); 1.99 (Rear)
Pad Wear Sensor Included:
Yes
Pad Wear Sensor Type:
Mechanical
Notes:
The Item Only Fits The Models With JA9 Heavy Brakes, And It Does Not Fit The Models With Standard JB9 Brakes.
Mounting Bolt Hole Quantity:
5
Bolt Diameter (In):
0.64
Solid Or Vented Type Rotor:
Vented (Front); Solid (Rear)
Inner Pad Width W/O Shim (In):
5.83 (Front); 4.24 (Rear)
Outer Pad Height W/O Shim (In):
2.42 (Front); 1.61 (Rear)
Nominal Thickness (In):
1.27 (Front); 0.43 (Rear)
Rotor Material:
Cast Iron
Mounting Hardware Included:
Yes
Inner Pad Height W/O Shim (In):
2.42 (Front); 1.61 (Rear)
Bolt Circle Diameter (In):
4.65
Product Number:
R55034,12162055,56641R,BR55034,56641,55034,BR5503401,12062055,125618,BD125618E,BD125618,18021015,180
