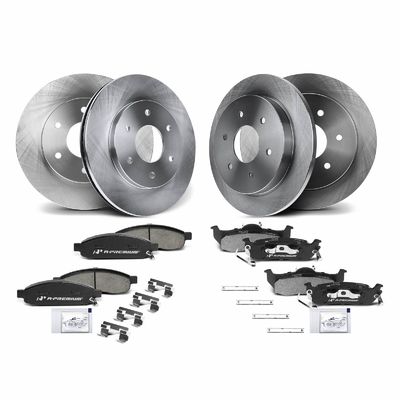

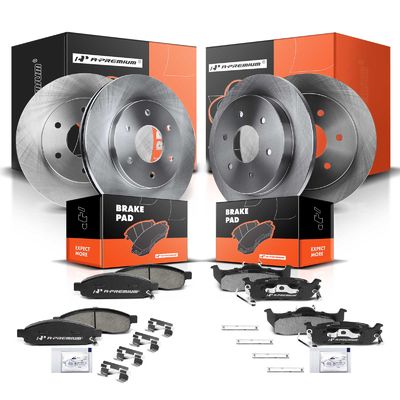

Front & Rear Disc Brake Rotors & Ceramic Brake Pads for INFINITI QX56 Nissan
Product Details

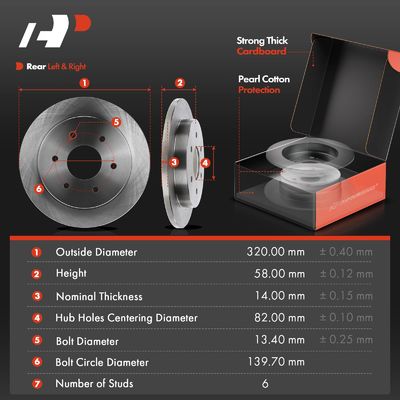

Rotor Outside Diameter (In):
12.60
Slotted:
Yes (Front); No (Rear)
Outer Pad Thickness W/O Shim (In):
0.69 (Front); 0.68 (Rear)
Discard Min. Thickness (In):
0.96 (Front); 0.47 (Rear)
Outer Pad Width W/O Shim (In):
6.93 (Front); 5.61 (Rear)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
3.24 (Front); 3.23 (Rear)
Inner Pad Thickness W/O Shim (In):
0.69 (Front); 0.68 (Rear)
Backing Material:
Iron
Rotor Height (In):
1.70 (Front); 2.28 (Rear)
Pad Wear Sensor Included:
Yes
Bolt Diameter (In):
0.54 (Front); 0.53 (Rear)
Mounting Bolt Hole Quantity:
6
Notes:
The Front & Rear Disc Brake Rotors With 12.6 Inch (320 Mm) Outside Diameter Fit The 6-stud Wheel.
Solid Or Vented Type Rotor:
Vented (Front); Solid (Rear)
Inner Pad Width W/O Shim (In):
6.93 (Front); 5.61 (Rear)
Outer Pad Height W/O Shim (In):
2.10 (Front); 2.06 (Rear)
Nominal Thickness (In):
1.02 (Front); 0.55 (Rear)
Rotor Material:
Cast Iron
Brake Lubricant Included:
Yes
Inner Pad Height W/O Shim (In):
2.10 (Front); 2.06 (Rear)
Bolt Circle Diameter (In):
5.50
Product Number:
R31328,12142084,BR31328,32042084,P1015,SGD1015C,SP1015TRH,410607S025,BE1015H,BP1015C,BSD1015,CFC1015
