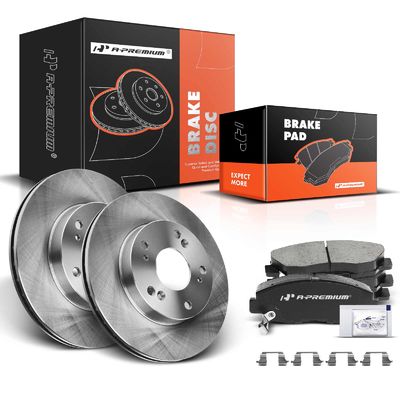

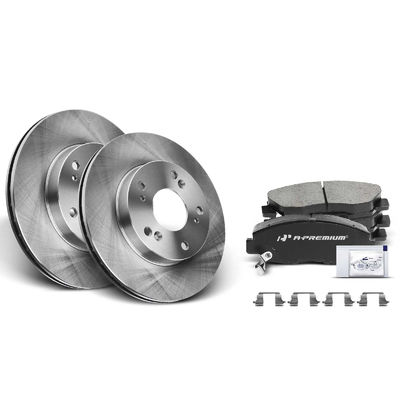

Front Disc Brake Rotors & Ceramic Brake Pads for Honda Civic 2006-2011
Product Details
Rotor Outside Diameter (In):
10.30
Slotted:
Yes
Outer Pad Thickness W/O Shim (In):
0.71
Discard Min. Thickness (In):
0.75
Outer Pad Width W/O Shim (In):
5.43
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
2.53
Inner Pad Thickness W/O Shim (In):
0.71
Backing Material:
Iron
Rotor Height (In):
1.85
Pad Wear Sensor Included:
Yes
Pad Wear Sensor Type:
Mechanical
Notes:
The Front Disc Brake Rotor Outside Diameter Is 10.3 Inch (262 Mm).
Mounting Bolt Hole Quantity:
5
Bolt Diameter (In):
0.50
Solid Or Vented Type Rotor:
Vented
Inner Pad Width W/O Shim (In):
5.43
Outer Pad Height W/O Shim (In):
2.07
Nominal Thickness (In):
0.83
Rotor Material:
Cast Iron
Brake Lubricant Included:
Yes
Inner Pad Height W/O Shim (In):
2.07
Bolt Circle Diameter (In):
4.50
Product Number:
R31311,P465A,BK9062326,651259278,ZD465AVK1,QC465AVK1,BK7062326,KOE2384,631259090,SC2384,CRK2384
Send An Inquiry
