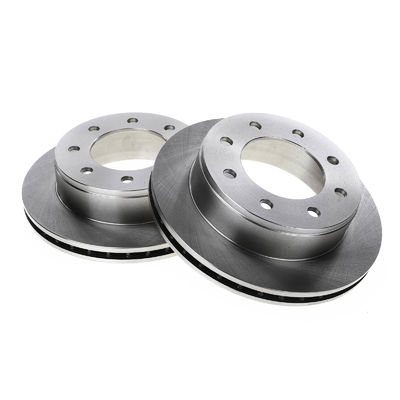

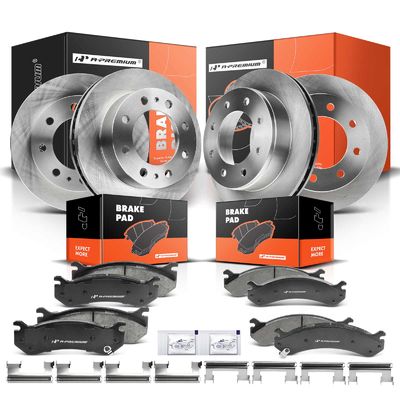

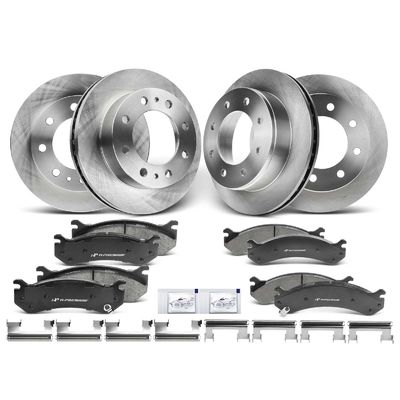

Front & Rear Disc Brake Rotors & Ceramic Brake Pads for GMC Sierra 1500 HD
Product Details
Rotor Outside Diameter (In):
12.78 (Front); 12.99 (Rear)
Slotted:
Yes
Outer Pad Thickness W/O Shim (In):
0.72 (Front); 0.73 (Rear)
Discard Min. Thickness (In):
1.44 (Front); 1.04 (Rear)
Outer Pad Width W/O Shim (In):
8.51 (Front); 6.97 (Rear)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
4.65 (Front); 4.63 (Rear)
Inner Pad Thickness W/O Shim (In):
0.72 (Front); 0.73 (Rear)
Backing Material:
Iron
Brake Lubricant Included:
Yes
Rotor Height (In):
3.52 (Front); 3.37 (Rear)
Pad Wear Sensor Included:
Yes
Pad Wear Sensor Type:
Mechanical
Notes:
The Front Disc Brake Rotors With 12.78 Inch (324.6 Mm) Outside Diameter And The Rear With 12.99 Inch (330 Mm) Outside Diameter Fit The 8-stud Wheel.
Mounting Bolt Hole Quantity:
8
Bolt Diameter (In):
0.65
Solid Or Vented Type Rotor:
Vented
Inner Pad Width W/O Shim (In):
8.51 (Front); 6.97 (Rear)
Outer Pad Height W/O Shim (In):
2.64 (Front); 2.35 (Rear)
Nominal Thickness (In):
1.49 (Front); 1.14 (Rear)
Rotor Material:
Cast Iron
Mounting Hardware Included:
Yes
Inner Pad Height W/O Shim (In):
2.64 (Front); 2.35 (Rear)
Bolt Circle Diameter (In):
6.50
Product Number:
R55072,BR55072,55072,126036,BD126036,18060654,P784,10307840,103.07840,SBC784,BP784C,30107840,R55057,
