Front & Rear Disc Brake Rotors & Ceramic Brake Pads for Subaru Legacy 06-09
Product Details

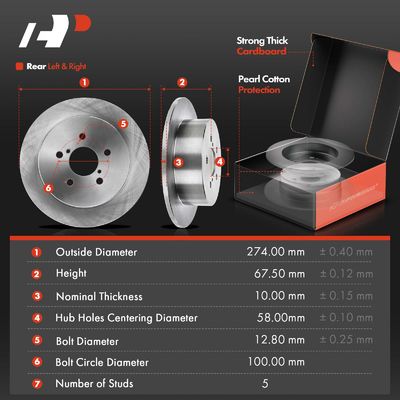

Rotor Outside Diameter (In):
11.56 (Front); 10.78 (Rear)
Slotted:
Yes
Outer Pad Thickness W/O Shim (In):
0.66 (Front); 0.54 (Rear)
Discard Min. Thickness (In):
0.87 (Front); 0.33 (Rear)
Outer Pad Width W/O Shim (In):
5.39 (Front); 4.35 (Rear)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
2.28
Inner Pad Thickness W/O Shim (In):
0.66 (Front); 0.54 (Rear)
Backing Material:
Iron
Brake Lubricant Included:
Yes
Rotor Height (In):
2.23 (Front); 2.66 (Rear)
Pad Wear Sensor Included:
Yes
Pad Wear Sensor Type:
Mechanical
Mounting Bolt Hole Quantity:
5
Bolt Diameter (In):
0.50 (Front); 0.51 (Rear)
Solid Or Vented Type Rotor:
Vented (Front); Solid (Rear)
Inner Pad Width W/O Shim (In):
5.39 (Front); 4.35 (Rear)
Outer Pad Height W/O Shim (In):
2.24 (Front); 1.46 (Rear)
Nominal Thickness (In):
0.94 (Front); 0.39 (Rear)
Rotor Material:
Cast Iron
Mounting Hardware Included:
Yes
Inner Pad Height W/O Shim (In):
2.24 (Front); 1.46 (Rear)
Bolt Circle Diameter (In):
3.94
Product Number:
R31407,BR900496,980360R,12147021,12147021,JBR1165,P929,KOE3038,BK7119716,SC3038,BK9119716,CRK3038,92
