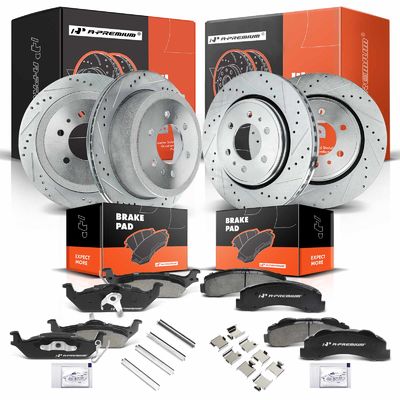

Front & Rear Drilled Rotors & Ceramic Brake Pads for Ford F-150 2010-2011 6-Lug
Product Details
Rotor Outside Diameter (In):
13.78 (Front); 13.7 (Rear)
Slotted:
Yes (Front); No (Rear)
Outer Pad Thickness W/O Shim (In):
0.71 (Front)
Discard Min. Thickness (In):
1.26 (Front); 0.73 (Rear)
Outer Pad Width W/O Shim (In):
7.65 (Front)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
3.54
Inner Pad Thickness W/O Shim (In):
0.71 (Front)
Backing Material:
Iron
Rotor Height (In):
1.95 (Front); 3.39 (Rear)
Pad Wear Sensor Included:
No (Front); Yes (Rear)
Bolt Diameter (In):
0.63 (Front); 0.6 (Rear)
Mounting Bolt Hole Quantity:
6
Notes:
The Front Drilled Rotors With 13.78 Inch (350 Mm) Outside Diameter And The Rear With 13.70 Inch (348 Mm) Outside Diameter Fit The 6-stud Wheel.
Solid Or Vented Type Rotor:
Vented
Inner Pad Width W/O Shim (In):
7.65 (Front)
Outer Pad Height W/O Shim (In):
2.67 (Front)
Nominal Thickness (In):
1.34 (Front); 0.79 (Rear)
Rotor Material:
Cast Iron
Brake Lubricant Included:
Yes
Inner Pad Height W/O Shim (In):
2.73 (Front)
Bolt Circle Diameter (In):
5.31
Product Number:
S54153,PRT5698,12165119,121.65119,12065119,12065119,P1414,MGD1414CH,SP1414PSH,SP1414TRH,10514140,S54
