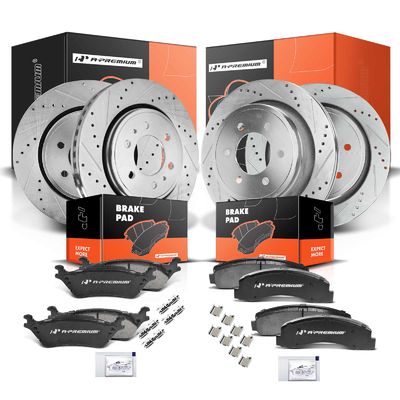

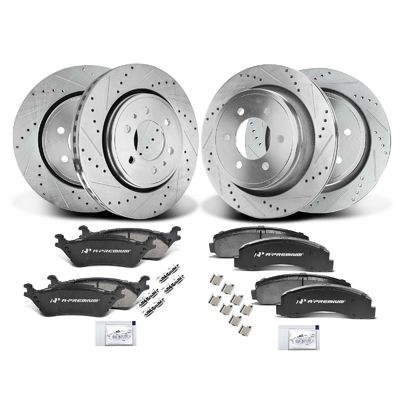

Front & Rear Drilled Rotors & Ceramic Brake Pads for Ford F-150 2012-2020 6-Lug
Product Details
Rotor Outside Diameter (In):
13.78 (Front); 13.70 (Rear)
Slotted:
Yes
Outer Pad Thickness W/O Shim (In):
0.71 (Front); 0.65 (Rear)
Discard Min. Thickness (In):
1.26
Outer Pad Width W/O Shim (In):
7.65 (Front); 5.86 (Rear)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
3.54 (Front)
Inner Pad Thickness W/O Shim (In):
0.71 (Front); 0.65 (Rear)
SolidolidOrVentedentedTypeRotor:
Vented
Backing Material:
Iron
Rotor Height (In):
1.95 (Front)
Pad Wear Sensor Included:
No
Bolt Diameter (In):
0.63
Mounting Bolt Hole Quantity:
6
Notes:
The Front Drilled Rotors With 13.78 Inch (350 Mm) Outside Diameter And The Rear With 13.70 Inch (348 Mm) Outside Diameter Fit The 6-stud Wheel.
Inner Pad Width W/O Shim (In):
7.65 (Front); 5.86 (Rear)
Outer Pad Height W/O Shim (In):
2.67 (Front); 2.13 (Rear)
Nominal Thickness (In):
1.34 (Front)
Rotor Material:
Cast Iron
Brake Lubricant Included:
Yes
Inner Pad Height W/O Shim (In):
2.73 (Front); 2.13 (Rear)
Bolt Circle Diameter (In):
5.31
Product Number:
S54153,PRT5698,12165119,121.65119,12065119,12065119,P1414,MGD1414CH,SP1414PSH,SP1414TRH,10514140,S54
