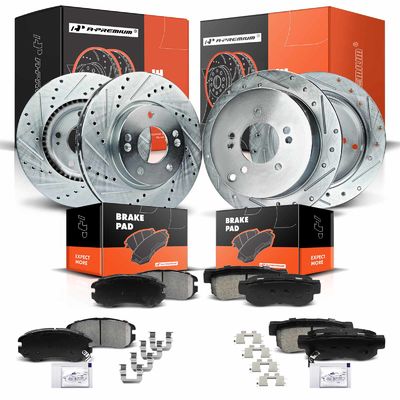

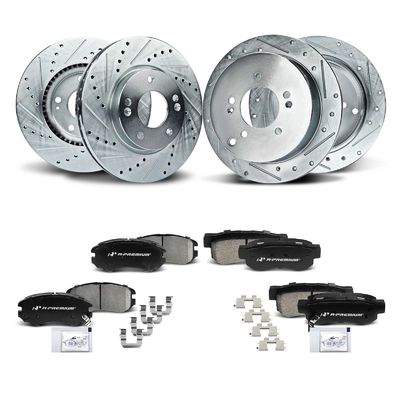

Front & Rear Drilled Rotors & Ceramic Brake Pads for Hyundai Tucson 2005-2009 Kia
Product Details
Rotor Outside Diameter (In):
11.02 (Front); 11.17 (Rear)
Slotted:
Yes
Outer Pad Thickness W/O Shim (In):
0.67 (Front); 0.58 (Rear)
Discard Min. Thickness (In):
0.96 (Front); 0.33 (Rear)
Outer Pad Width W/O Shim (In):
5.18 (Front); 3.89 (Rear)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
2.72 (Front); 2.99 (Rear)
Inner Pad Thickness W/O Shim (In):
0.67 (Front); 0.58 (Rear)
Backing Material:
Iron
Rotor Height (In):
1.86 (Front); 2.4 (Rear)
Pad Wear Sensor Included:
Yes
Bolt Diameter (In):
0.5 (Front); 0.49 (Rear)
Mounting Bolt Hole Quantity:
5
Notes:
This Item Fits The 4WD(Four Wheel Drive) Model.
Solid Or Vented Type Rotor:
Vented (Front); Solid (Rear)
Inner Pad Width W/O Shim (In):
5.18 (Front); 3.89 (Rear)
Outer Pad Height W/O Shim (In):
2.37 (Front); 1.61 (Rear)
Nominal Thickness (In):
1.03 (Front); 0.39 (Rear)
Rotor Material:
Cast Iron
Brake Lubricant Included:
Yes
Inner Pad Height W/O Shim (In):
2.37 (Front); 1.61 (Rear)
Bolt Circle Diameter (In):
4.50
Product Number:
S31337,P924,581012EA00,581012EA20,581012EA21,581012KA000,581012KA51,581011FA50,S31336,S31336,1205101
