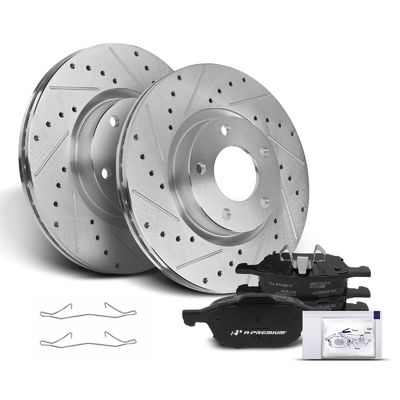

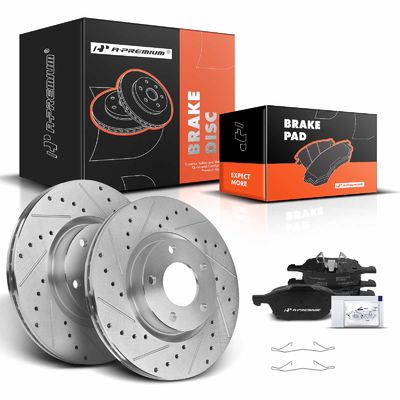

Front Drilled Rotors & Ceramic Brake Pads for Mazda 3 2004-2013 5 2006-2012
Product Details
Mounting Bolt Hole Quantity:
5
Friction Material Composition:
Ceramic
Rotor Outside Diameter (In):
11.81
Inner Pad Thickness W/O Shim (In):
0.63
Outer Pad Height W/O Shim (In):
2.12
Backing Material:
Iron
Solid Or Vented Type Rotor:
Vented
Nominal Thickness (In):
0.98
Outer Pad Thickness W/O Shim (In):
0.63
Discard Min. Thickness (In):
0.91
Rotor Material:
Cast Iron
Brake Lubricant Included:
Yes
Inner Pad Height W/O Shim (In):
2.12
Outer Pad Width W/O Shim (In):
6.44
Pad Wear Sensor Included:
No
Rotor Height (In):
1.91
Inner Pad Width W/O Shim (In):
6.44
Notes:
The Rotors With 299.72 Mm Outside Diameter Fit The 5-stud Wheel.
Bolt Circle Diameter (In):
4.50
Product Number:
S31363,12145069,980283R,PRT5603,BP6Y3325XF,BP6Y3325XD,C26Y3325XA,P1044,10310440,BP1044C,BE1044H,MGD1
