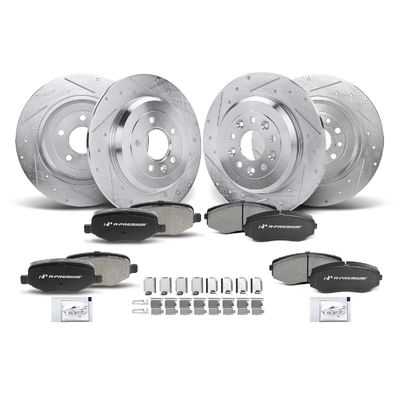

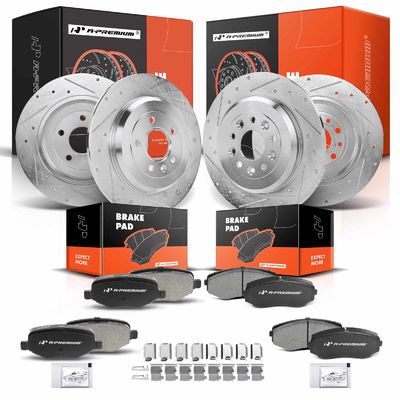

Front & Rear Drilled Rotors & Ceramic Brake Pads for Ford Edge not fit HD Brakes
Product Details
Rotor Outside Diameter (In):
12.6 (Front); 12.99 (Rear)
Slotted:
Yes (Front); No (Rear)
Outer Pad Thickness W/O Shim (In):
0.69 (Front); 0.67 (Rear)
Discard Min. Thickness (In):
1.02 (Front); 0.39 (Rear)
Outer Pad Width W/O Shim (In):
5.47 (Front); 4.6 (Rear)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
2.83 (Front); 2.68 (Rear)
Inner Pad Thickness W/O Shim (In):
0.69 (Front); 0.67 (Rear)
Backing Material:
Iron
Rotor Height (In):
1.9 (Front); 1.48 (Rear)
Pad Wear Sensor Included:
No
Bolt Diameter (In):
0.55 (Front); 0.56 (Rear)
Mounting Bolt Hole Quantity:
5
Notes:
The Front Rotors With 320 Mm Diameter And The Rear With 330 Mm Diameter Does Not Fit The HD Brakes.
Solid Or Vented Type Rotor:
Vented (Front); Solid (Rear)
Inner Pad Width W/O Shim (In):
5.47 (Front); 4.6 (Rear)
Outer Pad Height W/O Shim (In):
2.37 (Front); 1.97 (Rear)
Nominal Thickness (In):
1.1 (Front); 0.43 (Rear)
Rotor Material:
Cast Iron
Brake Lubricant Included:
Yes
Inner Pad Height W/O Shim (In):
2.37 (Front); 1.97 (Rear)
Bolt Circle Diameter (In):
4.50
Product Number:
S54154,P1258,S54165,P1377,BP1377MS,BP1377C,MGD1377CH,ZD1377,BE1377H,FVC1377,QC1377,ACT1377B,Z231377,
