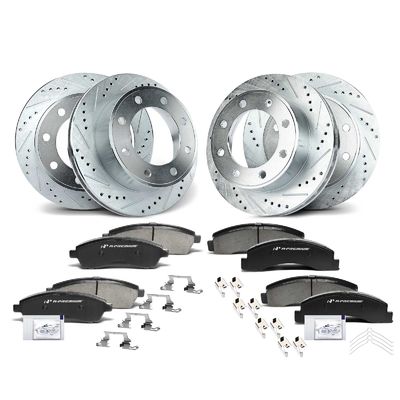

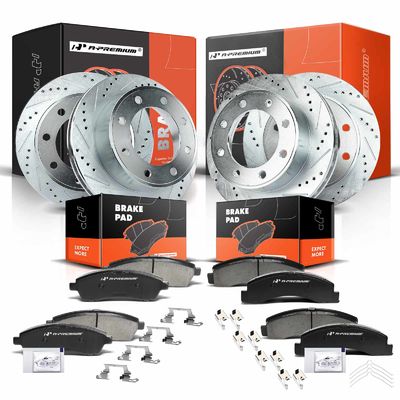

Front & Rear Drilled Rotors & Ceramic Brake Pads for Ford F-250 F-350 Super Duty
Product Details

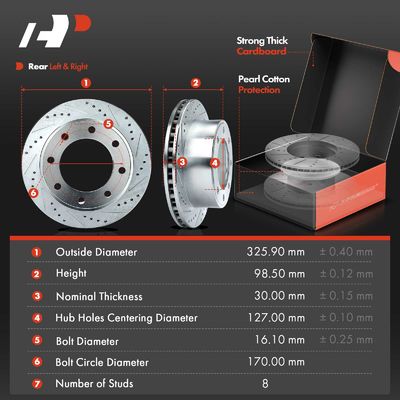

Rotor Outside Diameter (In):
13.03 (Front); 12.83 (Rear)
Slotted:
Yes
Outer Pad Thickness W/O Shim (In):
0.69 (Front)
Discard Min. Thickness (In):
1.42 (Front); 1.1 (Rear)
Outer Pad Width W/O Shim (In):
7.6 (Front)
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
5.09 (Front); 5 (Rear)
Inner Pad Thickness W/O Shim (In):
0.69 (Front); 0.6 (Rear)
Backing Material:
Iron
Rotor Height (In):
3.92 (Front); 3.88 (Rear)
Pad Wear Sensor Included:
No
Bolt Diameter (In):
0.64 (Front); 0.63 (Rear)
Mounting Bolt Hole Quantity:
8
Notes:
The Front Rotors With 331 Mm Diameter Fit The 4WD Models With Single Rear Wheels.
Solid Or Vented Type Rotor:
Vented
Inner Pad Width W/O Shim (In):
7.6 (Front); 4.53 (Rear)
Outer Pad Height W/O Shim (In):
2.51 (Front)
Nominal Thickness (In):
1.5 (Front); 1.18 (Rear)
Rotor Material:
Cast Iron
Brake Lubricant Included:
Yes
Inner Pad Height W/O Shim (In):
2.51 (Front); 1.8 (Rear)
Bolt Circle Diameter (In):
6.69
Product Number:
S54078,P824,S54074,P757,1C3Z2001AA,1C3Z2001BA,F81Z2001EA,30107570,10507570,88916926,17757,1310075701
