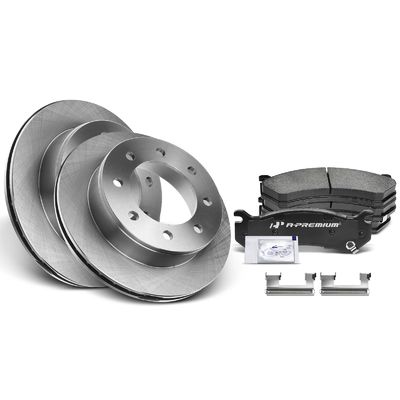

Rear Disc Brake Rotors & Ceramic Brake Pads for Chevy Silverado 2500 3500 HD GMC
Product Details

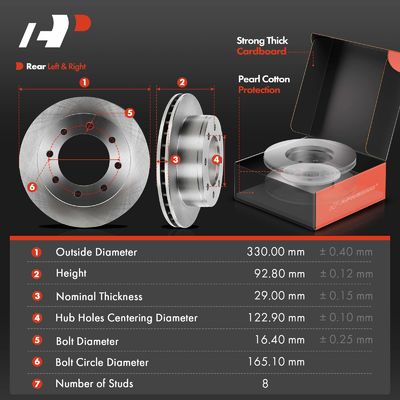

Rotor Outside Diameter (In):
12.99
Slotted:
Yes
Outer Pad Thickness W/O Shim (In):
0.73
Discard Min. Thickness (In):
1.06
Outer Pad Width W/O Shim (In):
6.97
Friction Material Composition:
Ceramic
Hub Holes Centering Diameter (In):
4.83
Inner Pad Thickness W/O Shim (In):
0.73
Backing Material:
Iron
Brake Lubricant Included:
Yes
Rotor Height (In):
3.67
Pad Wear Sensor Included:
Yes
Pad Wear Sensor Type:
Mechanical
Notes:
The Rear Disc Brake Rotor Outside Diameter Is 330 Mm (12.99 Inch).
Mounting Bolt Hole Quantity:
8
Bolt Diameter (In):
0.65
Solid Or Vented Type Rotor:
Vented
Inner Pad Width W/O Shim (In):
6.97
Outer Pad Height W/O Shim (In):
2.35
Nominal Thickness (In):
1.14
Rotor Material:
Cast Iron
Mounting Hardware Included:
Yes
Inner Pad Height W/O Shim (In):
2.35
Bolt Circle Diameter (In):
6.50
Product Number:
R55055,BR55055, 56992R,BR5505501,AR8644,662575,662895, P785,17785,SBC785,BE785H,MGD785MH,FVC785,MGD7
