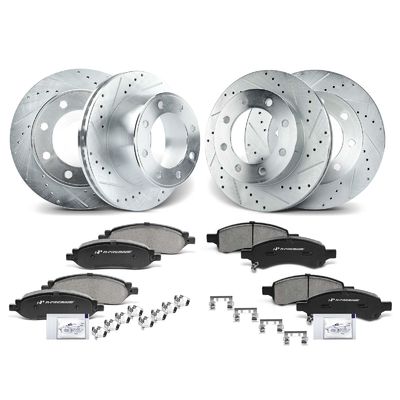

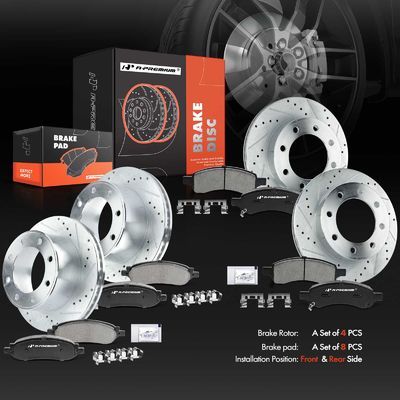

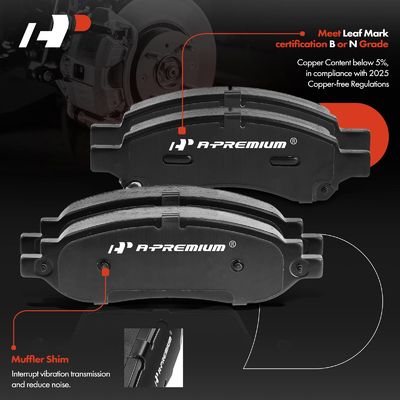

Front & Rear Drilled Rotors & Ceramic Brake Pads for Ford F-250 F-350 Super Duty
Product Details
Mounting Bolt Hole Quantity:
8
Friction Material Composition:
Ceramic
Rotor Outside Diameter (In):
13.66 (Front); 13.39 (Rear)
Slotted:
No
Inner Pad Thickness W/O Shim (In):
0.81 (Front); 0.71 (Rear)
Backing Material:
Iron
Solid Or Vented Type Rotor:
Vented
Nominal Thickness (In):
1.49 (Front); 1.34 (Rear)
Discard Min. Thickness (In):
1.43 (Front); 1.28 (Rear)
Rotor Material:
Cast Iron
Notes:
The Item Does Not Fit The Models With Harley PKG And The Models With Single Rear Wheel(SRW).
Mounting Hardware Included:
Yes
Inner Pad Height W/O Shim (In):
2.48 (Front); 2.19 (Rear)
Hub Holes Centering Diameter (In):
5.08 (Front); 5 (Rear)
Pad Wear Sensor Included:
No
Rotor Height (In):
3.94 (Front); 4.98 (Rear)
Brake Lubricant Included:
Yes
Inner Pad Width W/O Shim (In):
6.98 (Front); 6.99 (Rear)
Bolt Diameter (In):
0.63
Bolt Circle Diameter (In):
6.69
Product Number:
S54124,P1069,S54141,P1068,5C3Z1125AB,12165112,BP1069C,PRT5584,BP1068C,PMD1068,5C3Z2001AA,5C3Z2001CA
